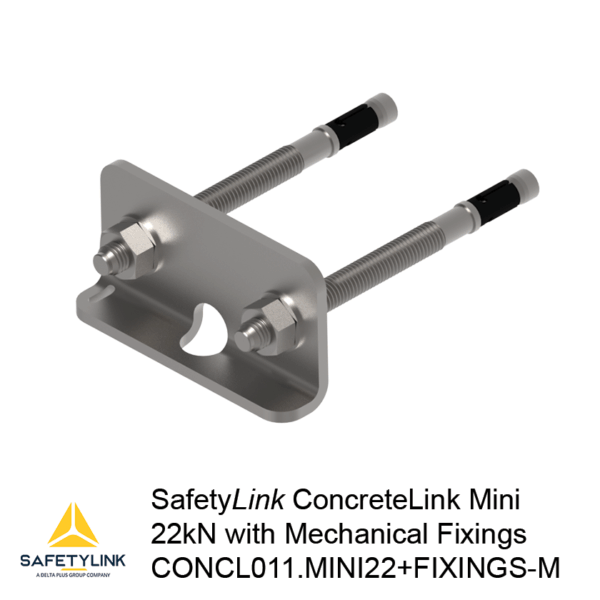

ConcreteLink Mini 22kN Anchor- Mechanical Fasteners

Product Code: CONCL011.MINI22+FIXINGS-M
What am I used for?

The ConcreteLink Anchor Point is designed to load in any direction in concrete or steel structures.

Low profile, ideal for anchors below floating tiles.
Can be chemically or mechanically fastened, recommended chemical is Fischer FIS-V or FAZ II Plus.
Rated to 22.2kN.
This product is suitable for abseil.
Suitable for use as a temporary horizontal lifeline end anchor.

The building or structure for the anchorages must be assessed by an engineer, unless it is clear to a competent person that the structure is adequate.

Complies with ANSI z359.18 and AS5532:2025.

Multi-Directional 360

Concrete Roof

Rope Access

Product Information
ConcreteLink Mini 22kN Anchor- Mechanical Fasteners

The ConcreteLink Anchor Point is designed to load in any direction in concrete or steel structures.

Low profile, ideal for anchors below floating tiles.
Can be chemically or mechanically fastened, recommended chemical is Fischer FIS-V or FAZ II Plus.
Rated to 22.2kN.
This product is suitable for abseil.
Suitable for use as a temporary horizontal lifeline end anchor.

The building or structure for the anchorages must be assessed by an engineer, unless it is clear to a competent person that the structure is adequate.

Complies with ANSI z359.18 and AS5532:2025.

Product Components
Components
Product Parts
Product Description Quantity Material
CONCL011.MINI22 ConcreteLink Mini 22kN Anchor 1 316 Stainless Steel
CONMECH-FISV.12.50 Fischer Bolt Anchor FAZ II Plus 12/50 R Stainless Steel 2 316 Stainless Steel
WASHER M12_Spring_316 Washer: M12 Spring 2 316 Stainless Steel
