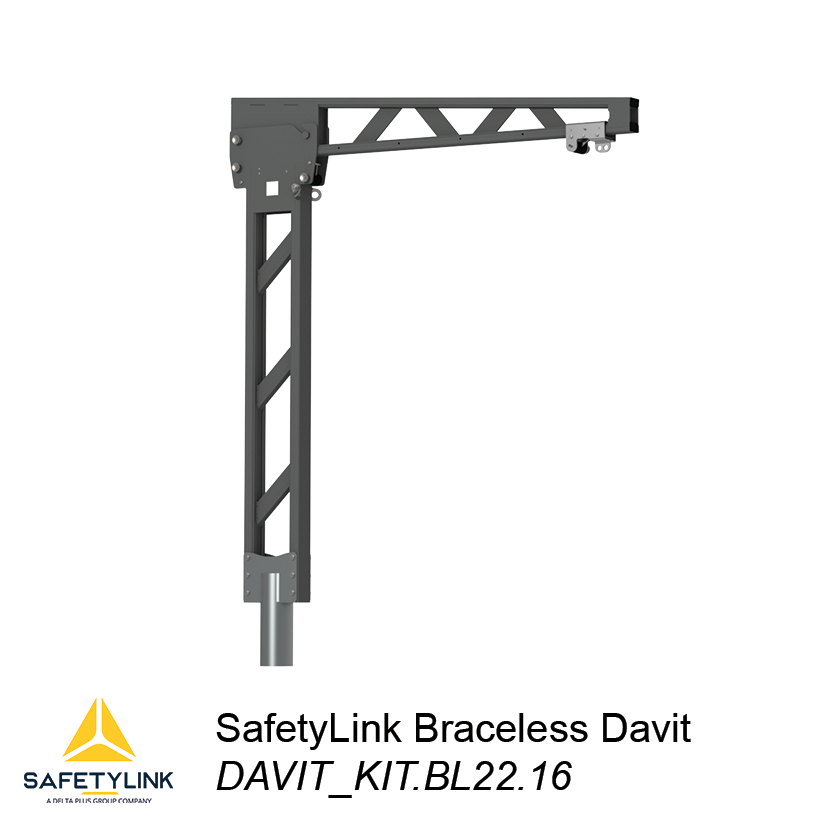

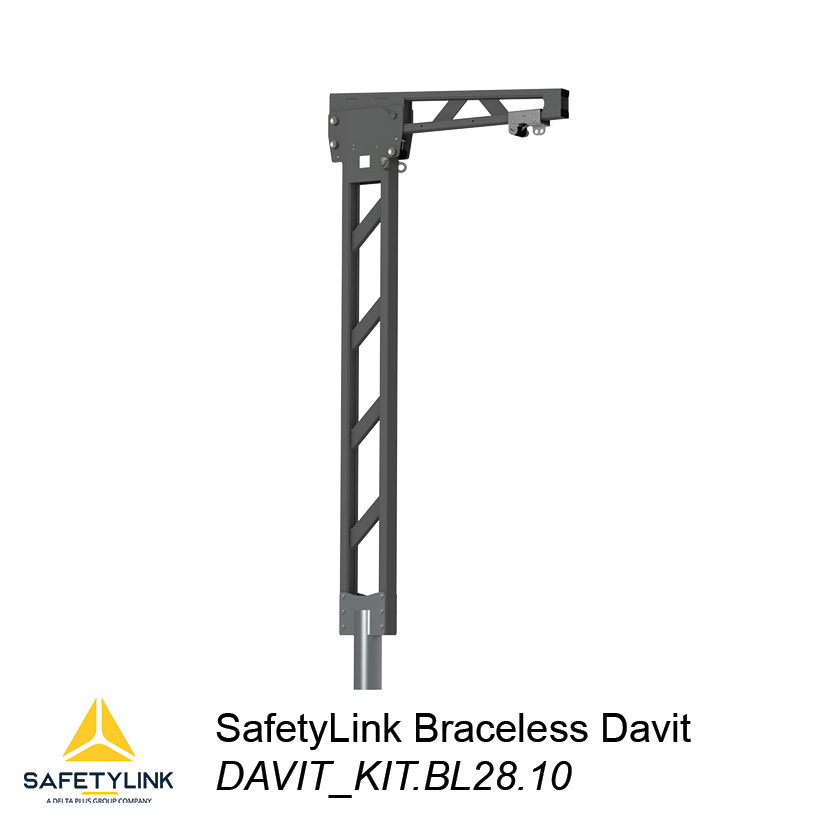

SafetyLink’s FastFit Braceless Davit is a patent-pending temporary davit system designed to provide access for raising and lowering workers from elevated areas, including rooftops. The system provides a flexible solution for suspended access and fall protection, allowing workers to access areas beyond parapet walls and balustrades.

With a maximum height of 2.8 metres and a reach of up to 2.2 metres, the FastFit Davit provides adjustable access across a range of rooftop and elevated work applications.

Flexible Temporary Davit System

The FastFit Braceless Davit is designed as a temporary anchor system, allowing one user to be suspended from the shuttle while a second user can connect to either of the secondary attachment points on the mast or base.

The shuttle traverses back and forth along the boom, providing greater positioning flexibility and adjustment when accessing areas beyond parapets and balustrades.

The davit system breaks down into two easily transportable components, making it practical to transport, install and reposition where required.

FastFit Davit Features

• Australian Made
• Patent Pending
• Shuttle traverses back and forth for increased adjustment
• Breaks down into two easily transportable components
• Maximum reach of 2.2 metres
• Maximum mast height of 2.8 metres
• Available in 1m, 1.6m and 2.2m boom sizes
• Available in 1m, 1.6m, 2.2m and 2.8m mast heights
• Retro-fit and pre-cast mounting options
• Fixed and removable floor-mount base options
• Fixed wall-mount base option

Fall Protection & Suspended Access

The FastFit Braceless Davit is rated for one user with a maximum weight of 150kg suspended from the shuttle, with a second user connected to either of the secondary attachment points.

The system provides a temporary anchorage solution for applications requiring worker access, suspended access and fall protection.

Material Handling

The FastFit Davit can also be used for material handling of up to 500kg, subject to the applicable boom configuration and requirements outlined in the installation handbook.

A davit configured for material lifting must not be used to support a worker. Refer to the installation handbook for maximum allowable loads and application requirements.

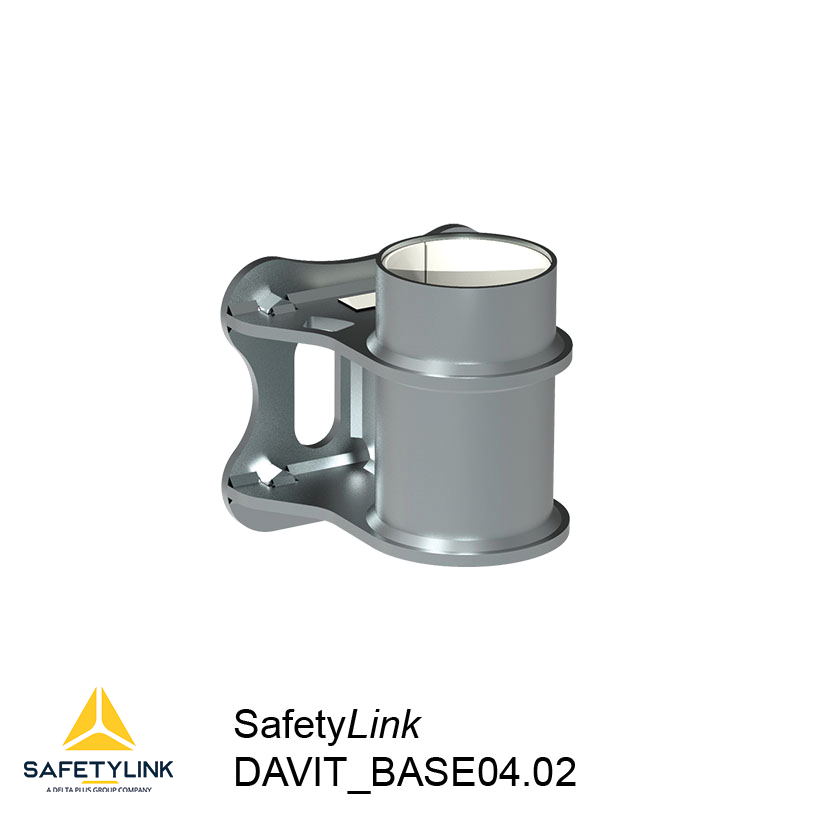

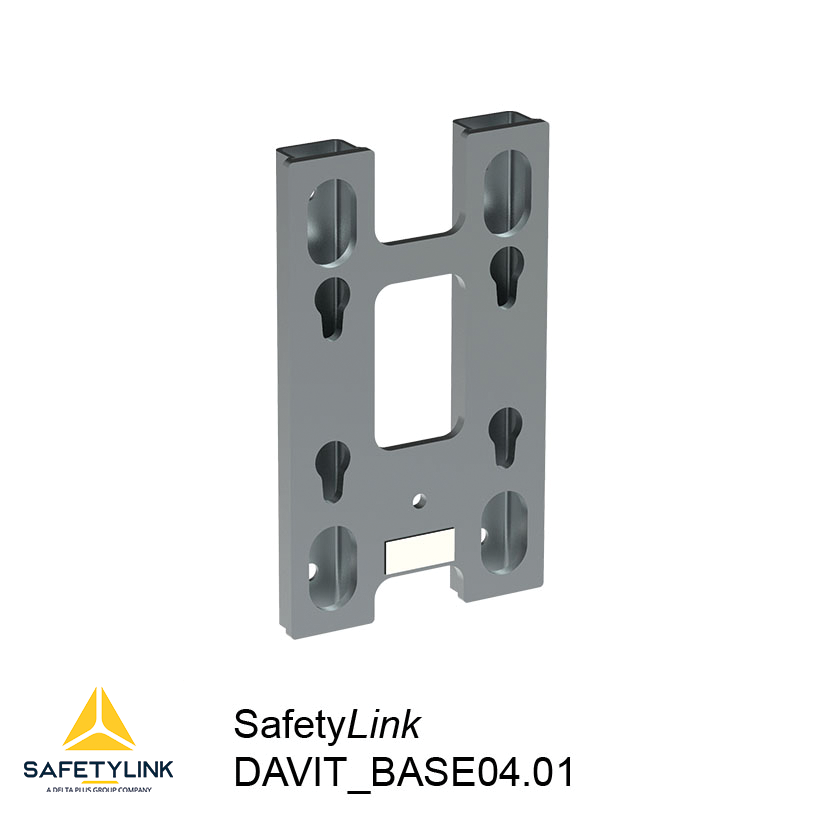

Davit Mounting Options

The FastFit Davit is available with a range of mounting and base configurations to suit different applications, including:

• Retro-fit mounting
• Pre-cast mounting
• Fixed floor-mount bases
• Removable floor-mount bases
• Fixed wall-mount bases

This range of configurations allows the FastFit Davit system to be integrated into different building and access requirements.

Standards & Compliance

The FastFit Davit Temporary Anchor System is compliant with AS/NZS 5532.

For detailed product requirements, installation information and application limitations, refer to the FastFit Davit installation handbook.

Davit System Specifications

Architects, engineers and other building professionals can obtain specifications and technical information for the FastFit Davit and other SafetyLink height safety and access systems.

Contact us for product specifications and specify the product you require.
