X-RAIL ULTRA

Horizontal Rigid Rail System

What am I used for?

The SafetyLink X-Rail Ultra is a robust horizontal rigid rail system designed for personal fall protection, suitable for abseiling and fall arrest scenarios. It supports up to four users with a maximum weight of 150kg each and can be installed overhead, on walls, or on floors with a limited incline (up to 5 degrees). Key features include:

  • Multi-User Compatibility: Rated for up to 4 users, supporting heavy-duty applications.
  • Enhanced Safety: Ideal for environments with restricted fall clearance.

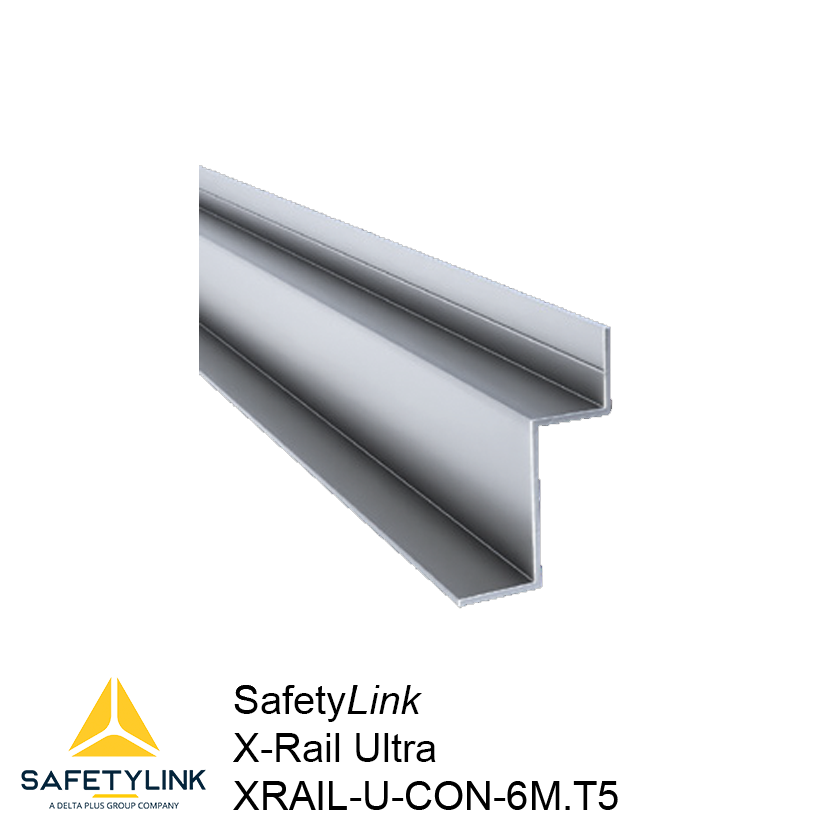

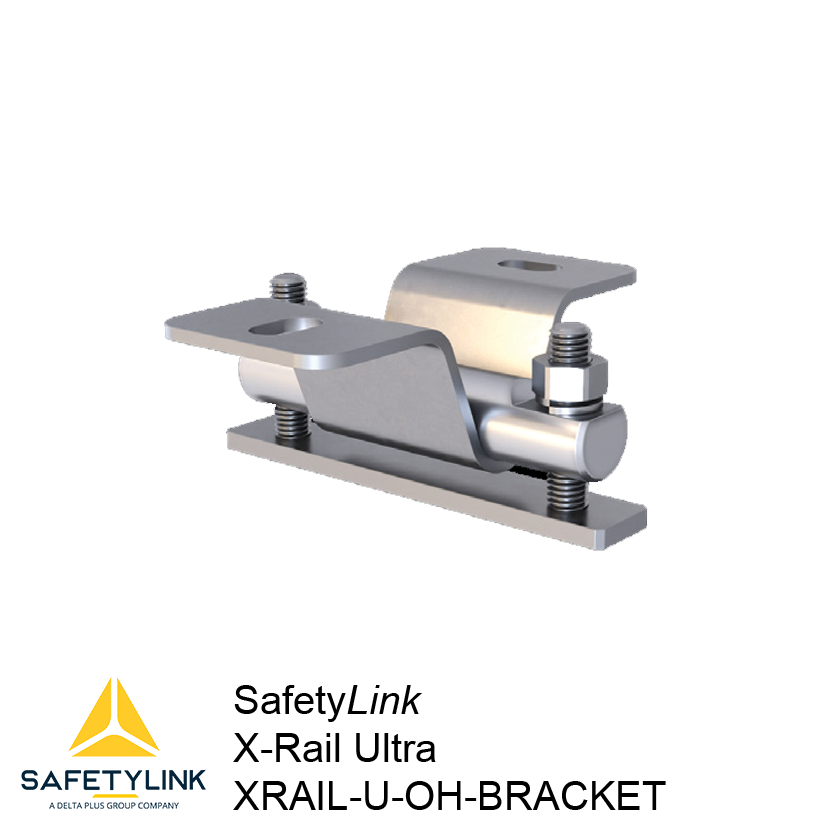

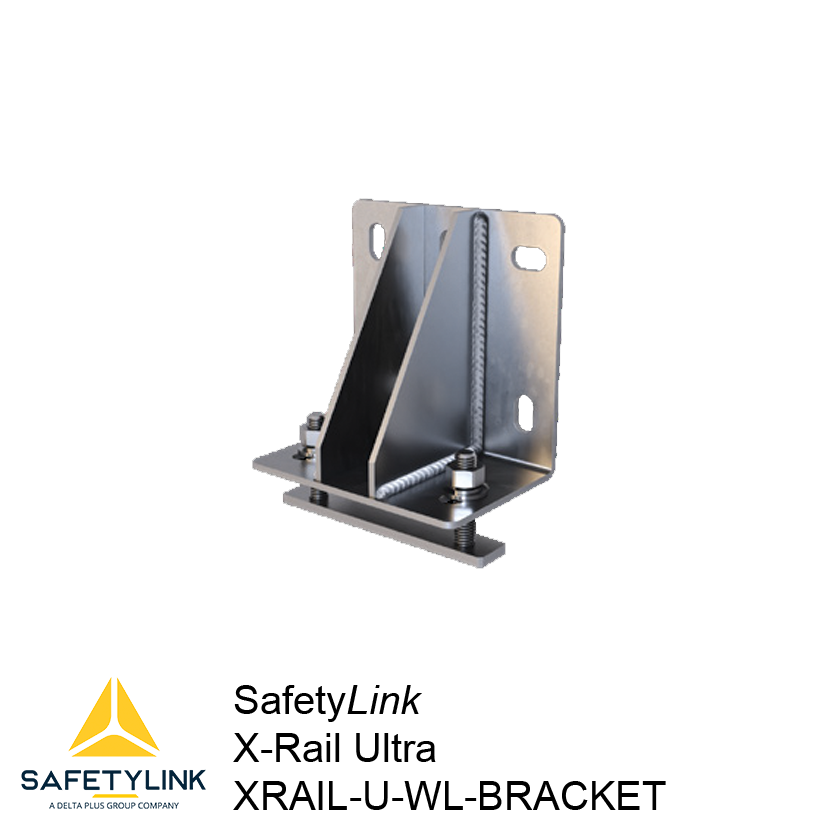

  • Flexible Installation: Mountable overhead, on walls, or floors, with options for concealed mounting.

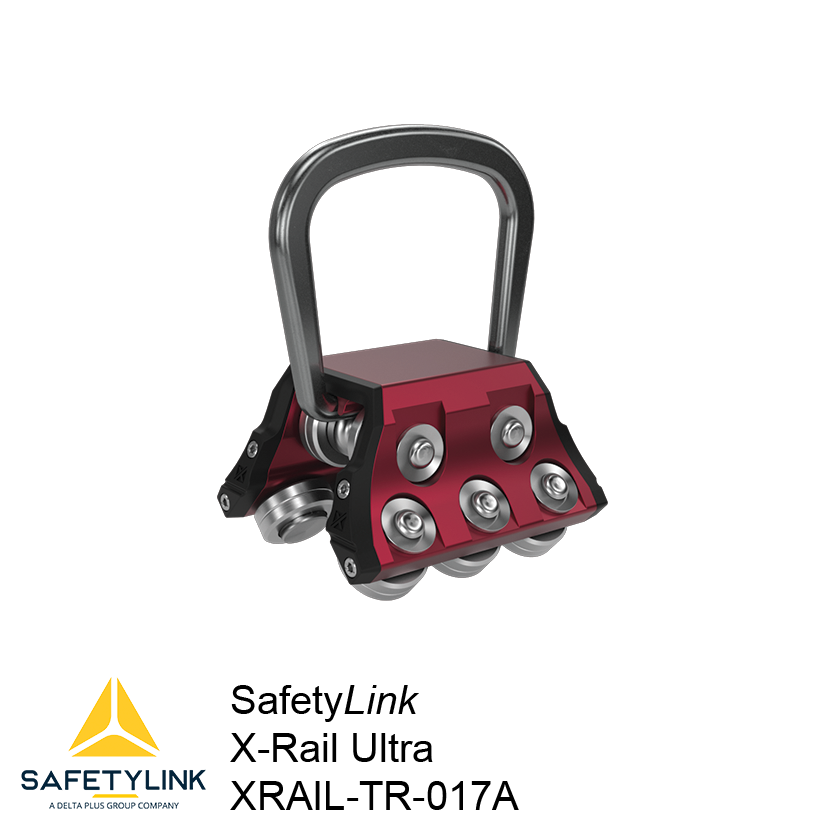

  • Advanced Shuttle System: Provides continuous, smooth movement along the rail.

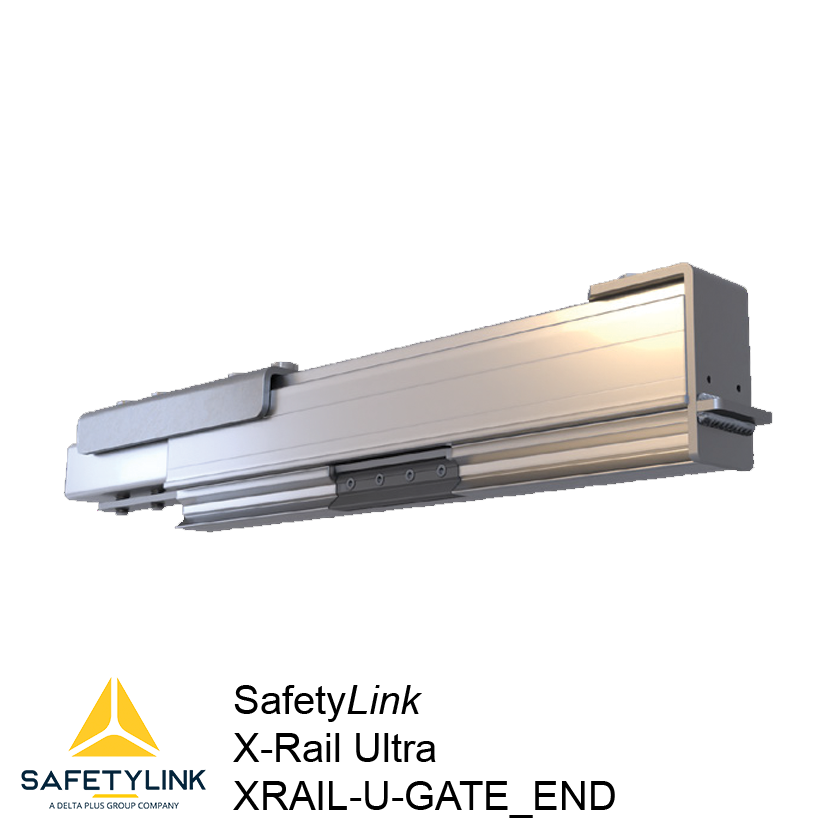

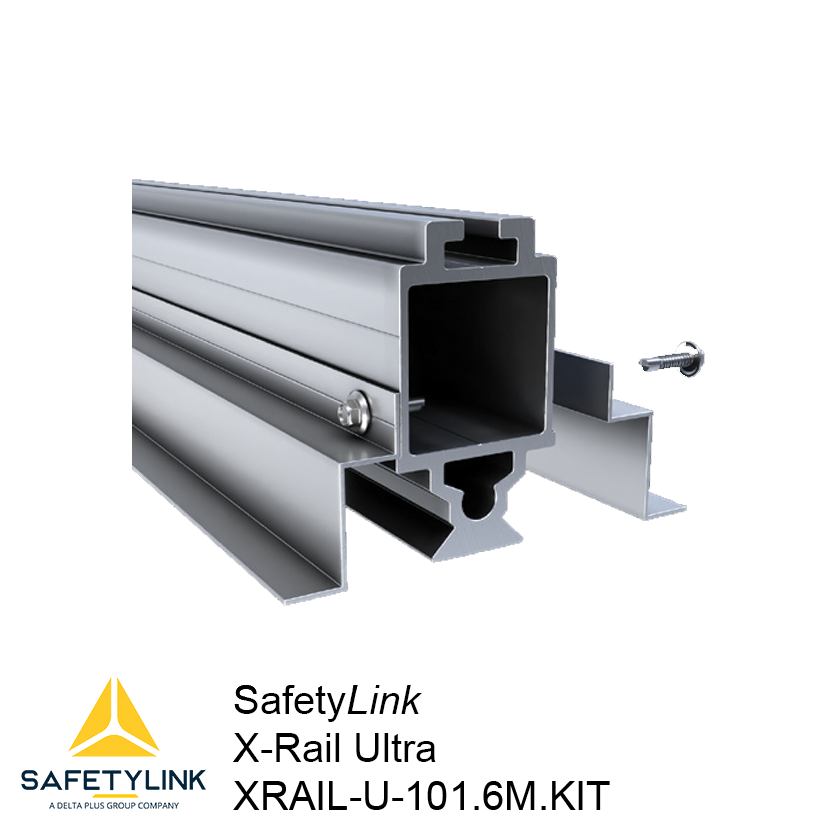

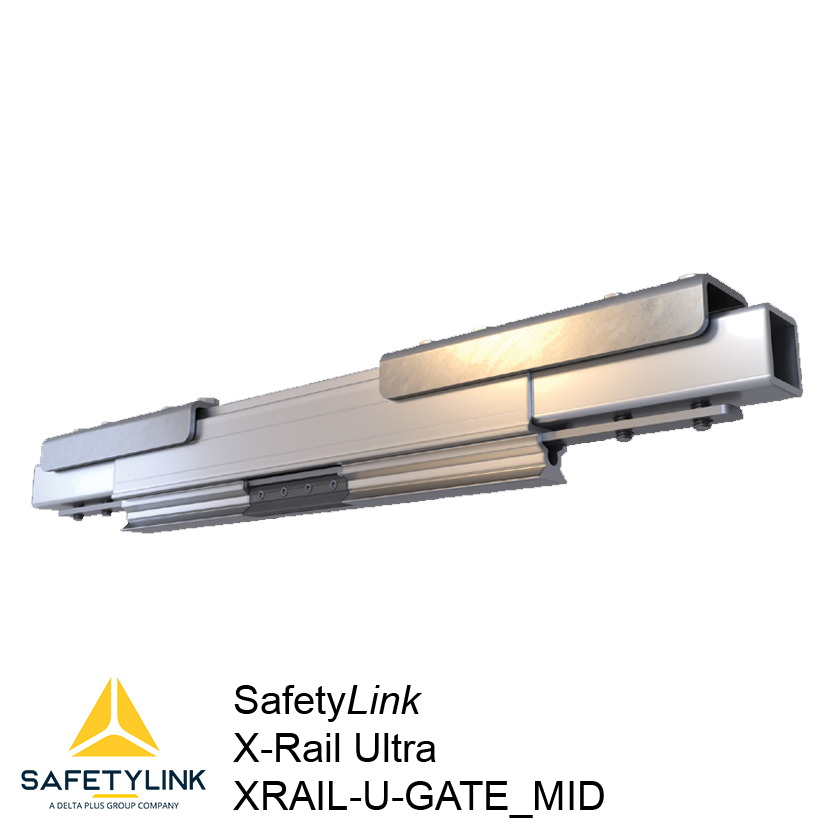

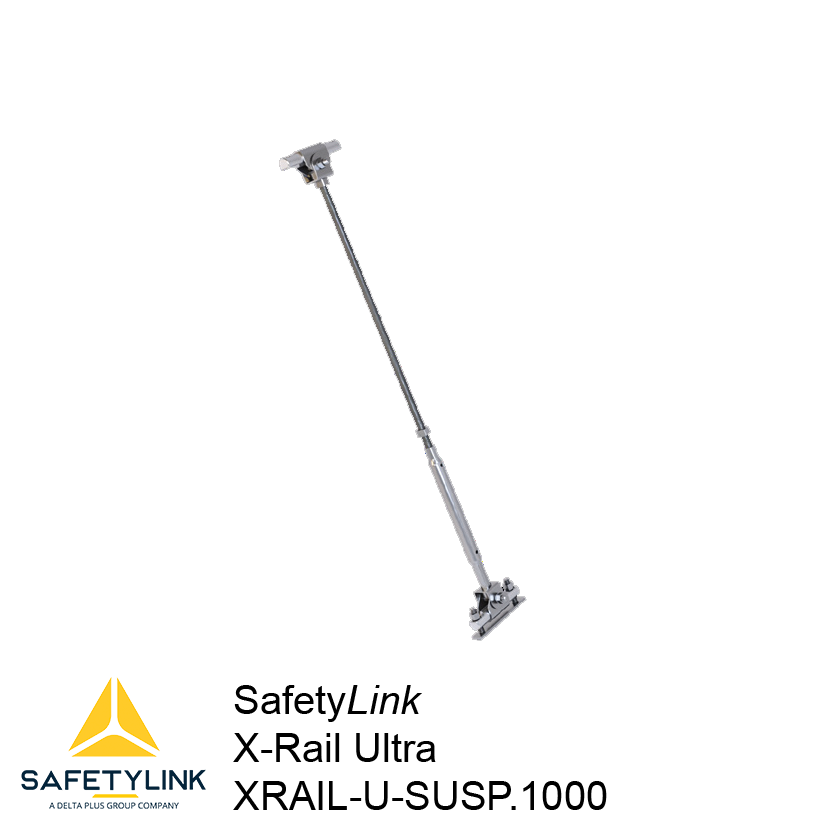

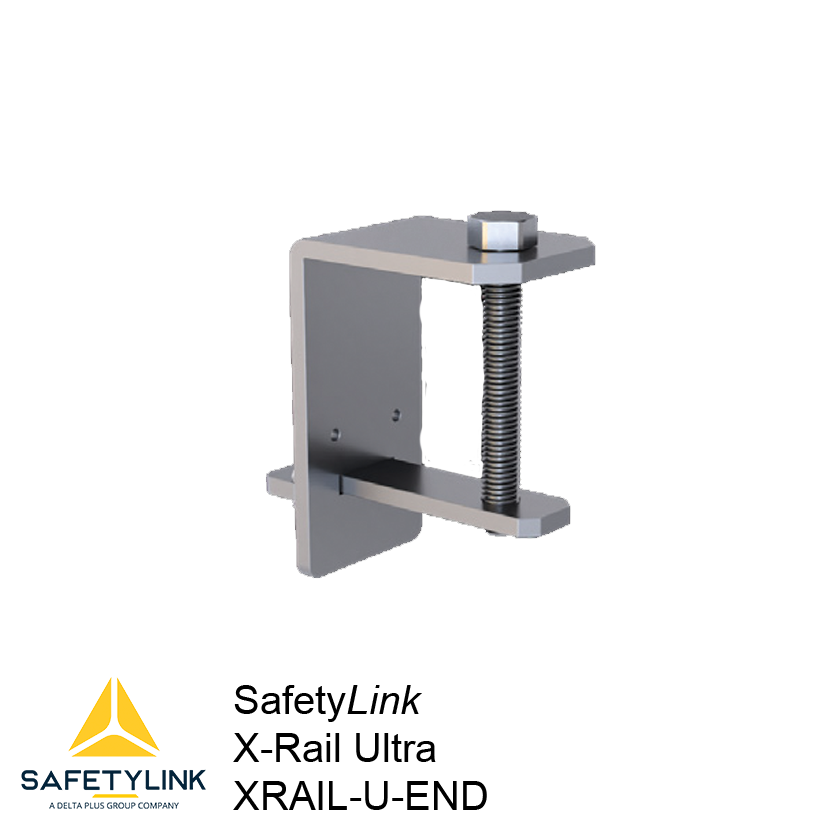

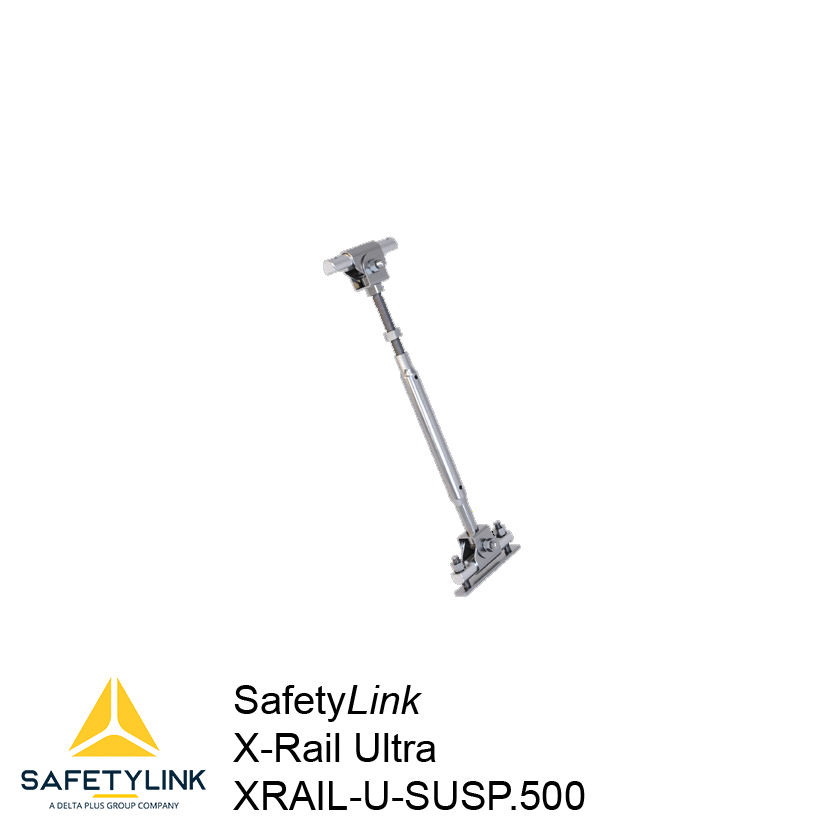

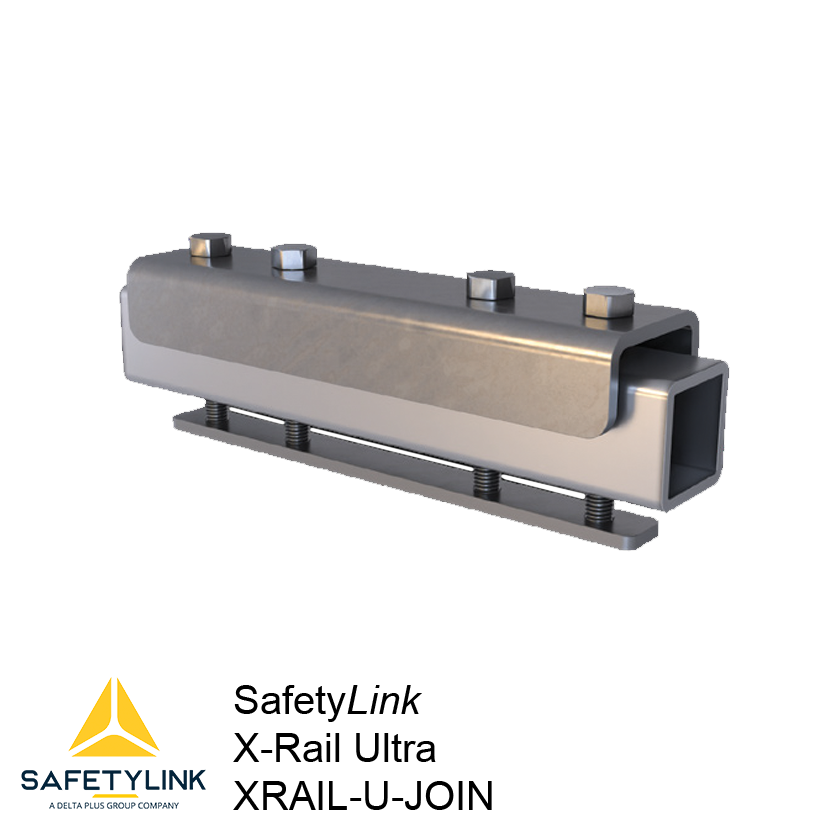

  • Durable Components: Includes suspension assemblies, end gates, and join kits, all compliant with AS/NZS 1891.2, EN795:2012, and PD CEN/TS 16415:2013 standards.

This system combines easy handling, a streamlined installation process, and compatibility with various industrial environments, making it a premier choice for high-risk applications.

4 max Per System

Multi-Directional 360

Product Information
X-RAIL ULTRA

The SafetyLink X-Rail Ultra is a Rigid Anchor Line suitable for use as part of a personal fall protection system. The X-Rail Ultra offers a Horizontal Rigid Anchor Line with one or multiple mobile anchor points for attaching to.

The X-Rail Ultra can be used for Fall Arrest and Abseiling Overhead. X-Rail is suitable when fall clearance is limited. The X-Rail Ultra Horizontal Rigid Rail System shall be installed on an angle no greater than 5 degrees. The X-Rail Ultra Horizontal Rigid Rail System is rated for up to 4 users with a maximum weight of 150kg each. The X-Rail Horizontal Rigid Rail System is compliant with AS/NZS 1891.2, EN795:2012 and PD CEN/TS 16415:2013.

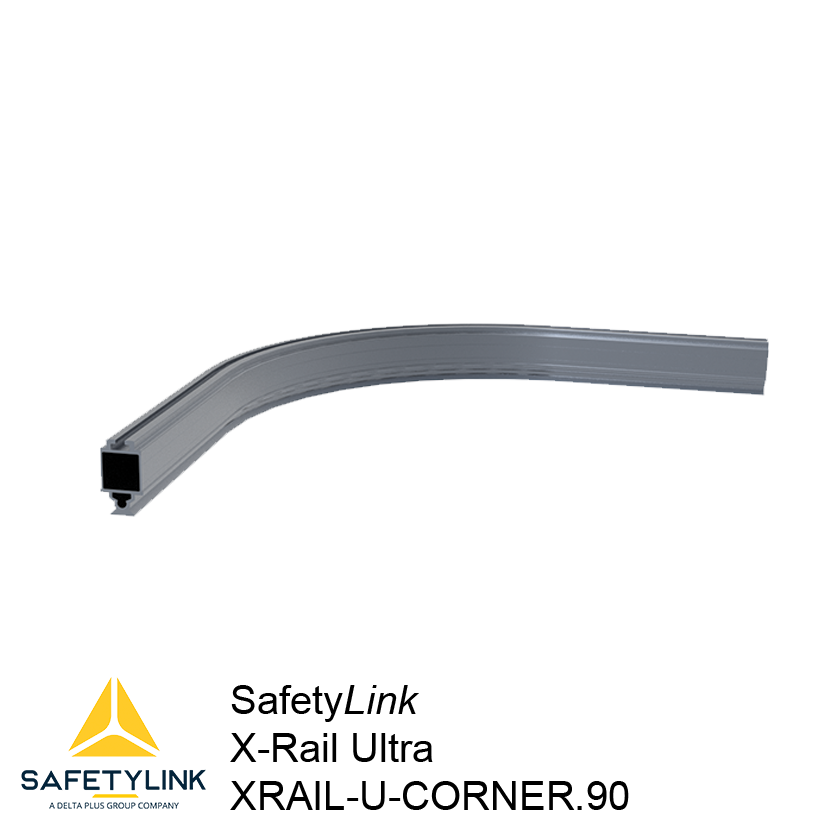

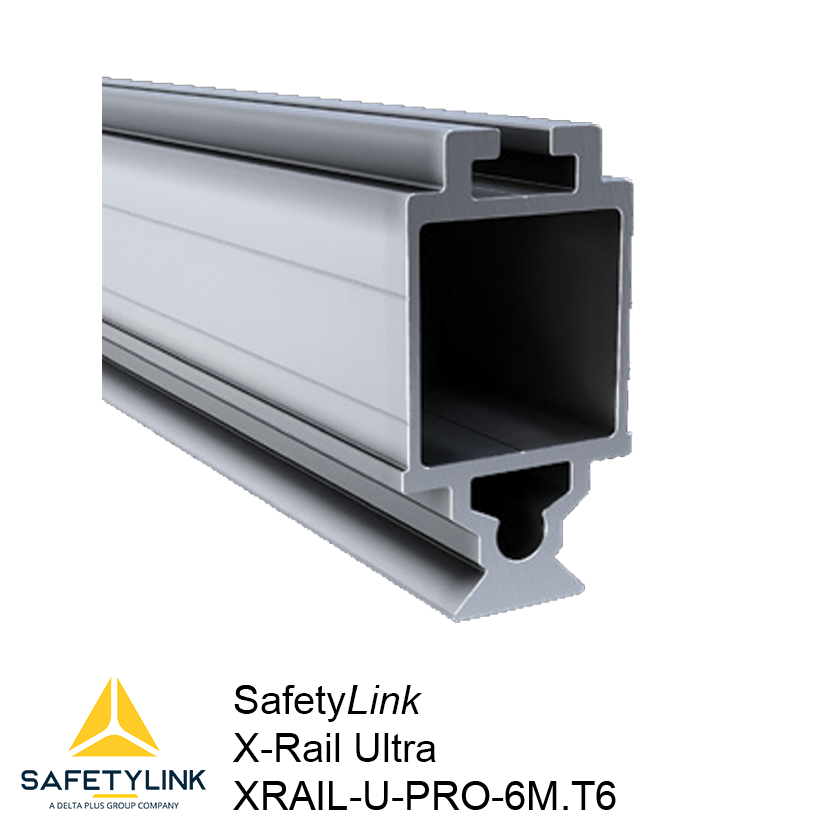

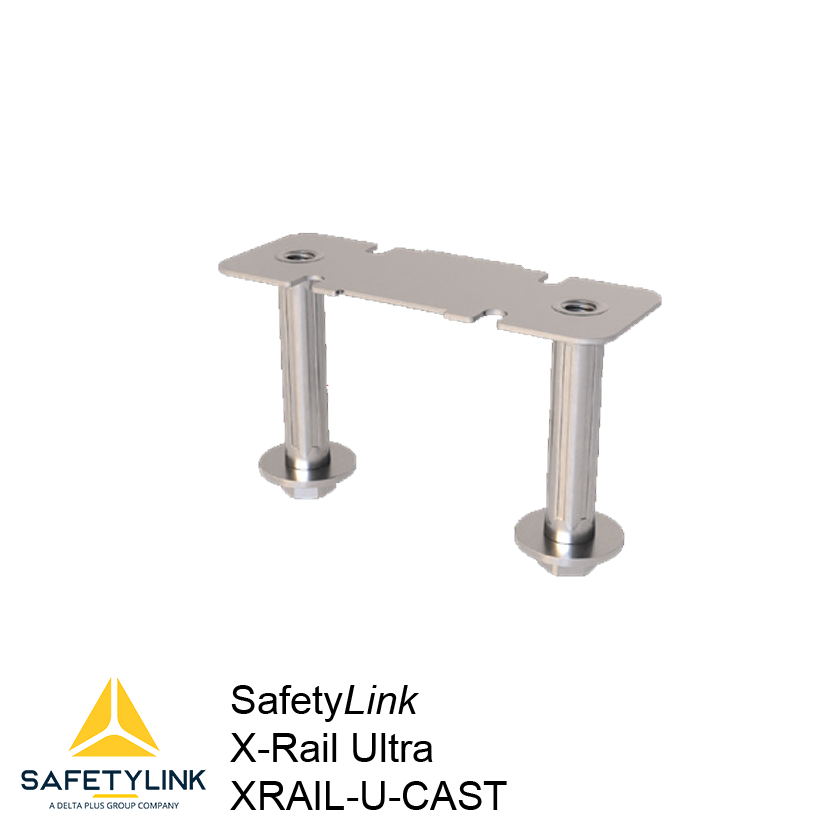

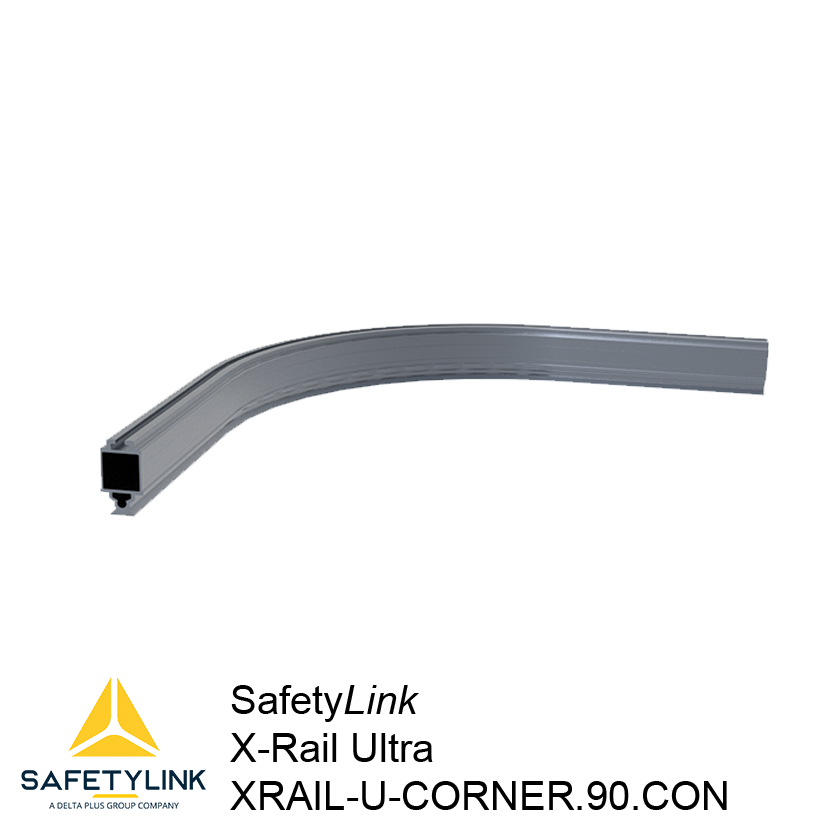

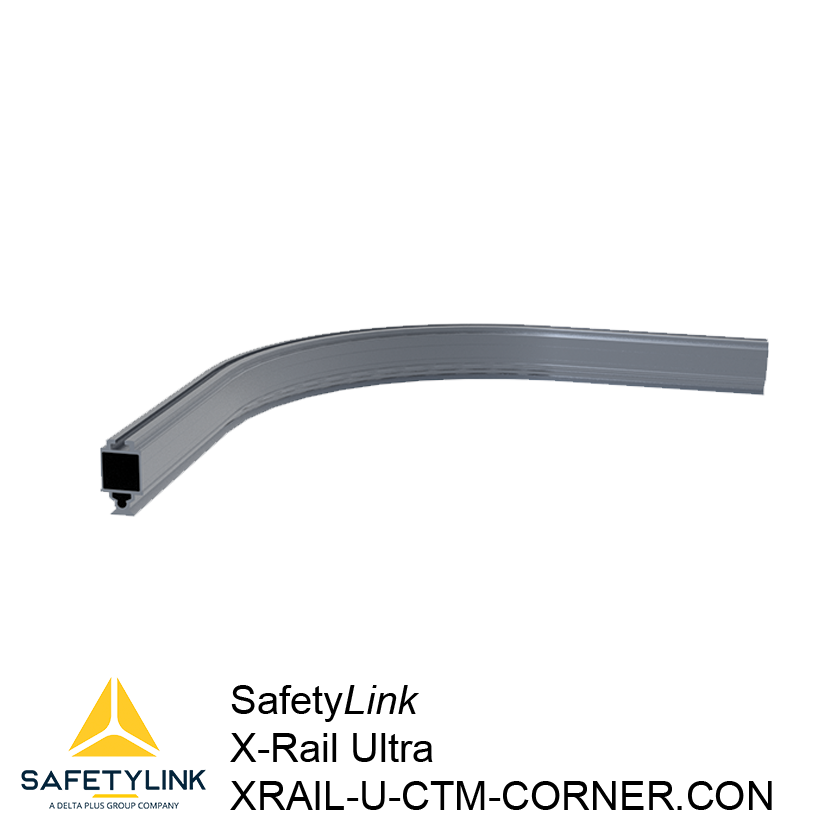

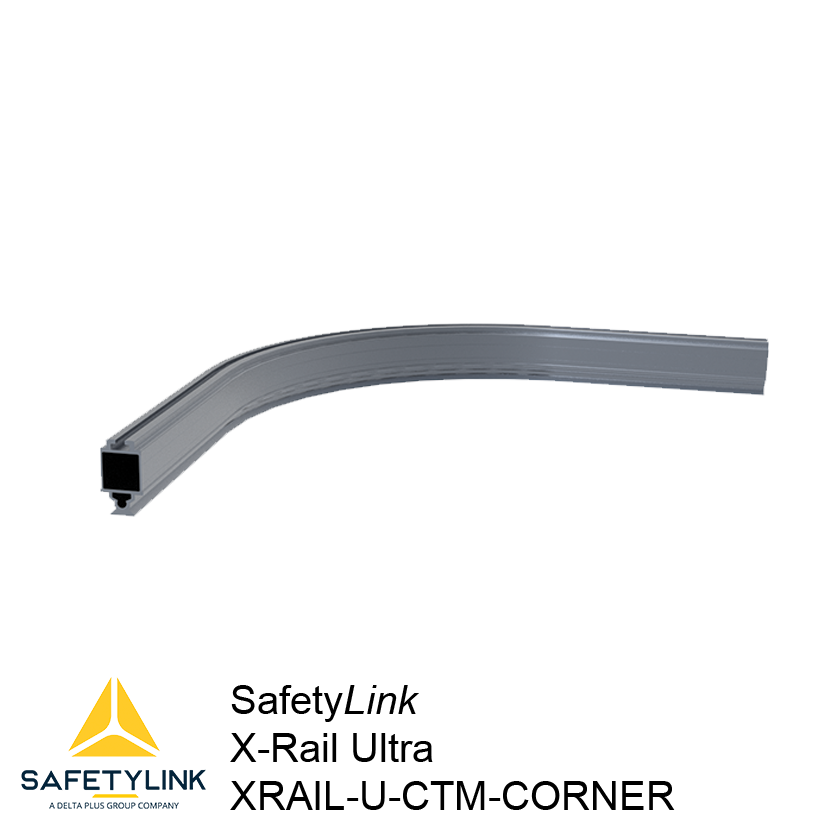

Components
