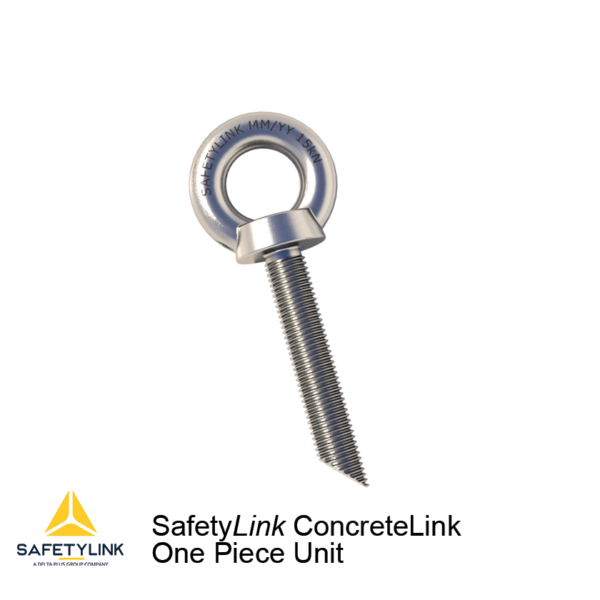

Safetylink Concretelink One Piece Unit

Product Code: CONCL005
What am I used for?

An anchor point designed for use in concrete, where the eyebolt will remain exposed for attachment.

  • Manufactured single piece unit.
  • Collared Eyebolt with external thread 16mm, 90mm length.
  • Chemically anchored¬†(Chemical Adhesive).
  • Multi-directional fall protection.
  • Single person anchor.
  • Rated at 15kN.
  • Fall arrest and rope access anchor.
  • 316 Stainless Steel.
  • Complies with Australian and New Zealand Standard AS/NZS 1891.4, EN 795:2012, CEN/TS 16415:2013, AS/NZS 5532-2013.

1 Rated 15kn

Multi-Directional 360

Concrete Roof

Rope Access

Product Information
Safetylink Concretelink One Piece Unit

An anchor point designed for use in concrete, where the eyebolt will remain exposed for attachment.

Product Components
Components
Product CodeProduct Description
CONCL005Eyebolt: M16 90mm Thread 316SS

Positioning Of Safetylink Anchor Point
(refer to appendix diagrams 2 and 3 of the Handbook)

The first must be in a position easily and safely reached by a secured ladder or a manhole access point.
