Concretelink Collared Eyebolt

Product Code: CONCL002
What am I used for?

An anchor point designed for use in concrete, where the eyebolt will remain exposed for attachment.

  • For use in concrete.
  • Low Profile.
  • Must be chemically fastened (Chemical Adhesive).
  • Multi-directional fall protection.
  • Single Person Anchor.
  • Rated at 15kN.
  • Complies with Australian and New Zealand Standard AS/NZS 1891.4.
  • Fall arrest and rope access anchor.

1 Rated 15kn

Multi-Directional 360

Concrete Roof

Rope Access

Product Information

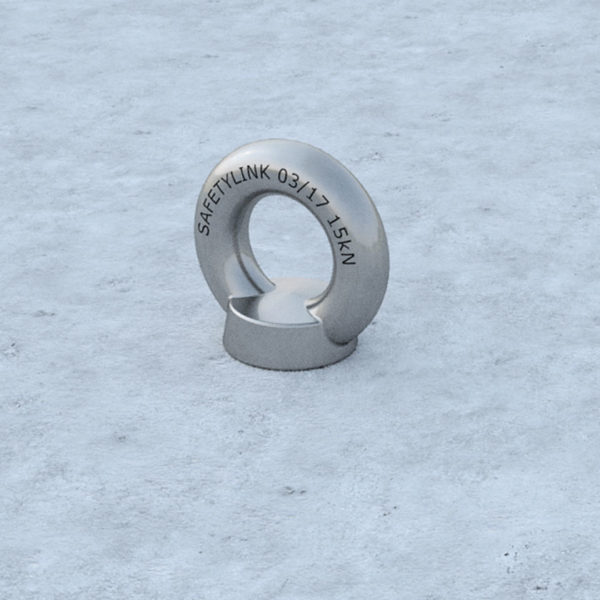

Concretelink Collared Eyebolt Roof Anchor

SafetyLink’s ConcreteLink is an extremely versatile anchor with a number of different eyebolt/insert combinations. The eyebolt range starts with SafetyLink’s Standard Eyebolt which is designed for fall arrest, it’s long tapered stem is designed to absorb energy while arresting a fall therefore reducing the load off the structure and the person in the event of a fall.

Alternatively SafetyLink’s Abseiling Eyebolt is a fall arrest rope access anchor which uses the same tapered concept as the standard eyebolt but incorporates a shorter design enabling the eyebolt to withstand a live load without activating the bending motion that occurs when arresting a fall. Where a low profile design is more desirable a Collared Eyebolt can be used to achieve this.

The SafetyLink Brass Cap helps keep the internal thread of the concrete insert clean and free from dirt and debris when the eyebolt is not present.

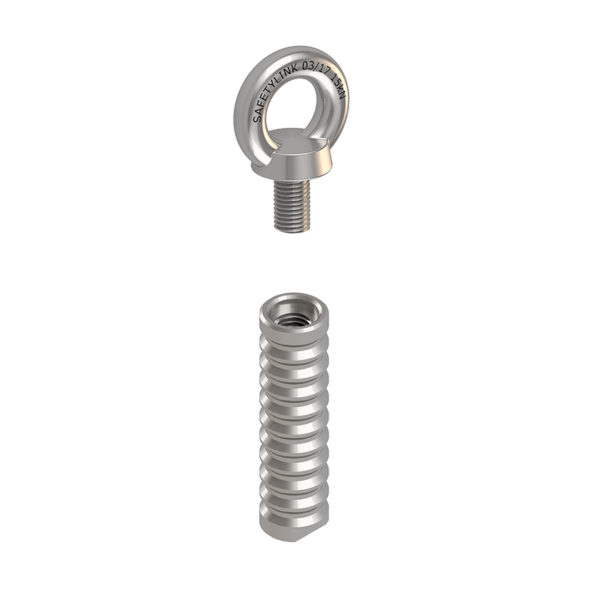

Product Components
Product Description Quantity
Concrete Insert 304SS 1
Collared Eyebolt 316SS 16mm thread 1

Positioning Of Concretelink Anchor Point
(refer to appendix diagrams 2 and 3 of the Handbook)

The first ConcreteLink Anchor Point must be in a position easily and safely reached by a secured ladder or a manhole access point.

Testing for Free fall-arrest for one person. 15 kN ultimate strength.
1. To comply with Australian Standards each ConcreteLink unit must be tested after installation.
2. Allow sufficient time for curing before testing, see instructions on fastener container.
3. Test consists of ultimate pull out force proof loading to 50% of design purpose of anchorage.
4. Recommended chemical anchor: Hilti RE500 or Hilti HY200 as per Hilti Product Supplement Data Sheets. Read instructions on product carefully. The entire surface of the ConcreteLink unit that is in contact with the concrete must have sufficient adhesive gel, as specified on the product.
