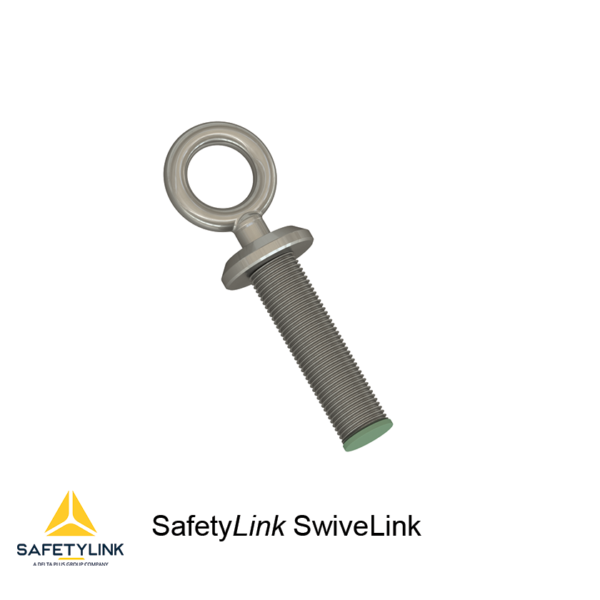

Swivelink - Safetylink Roof Anchor

Product Code: SWIVEL002
What am I used for?

An anchor point designed for use in concrete structures. With the convenience of a swivelling eyebolt.

  • For use in concrete.
  • Stainless steel construction.
  • Multi-directional fall protection.
  • Single person anchor.
  • Rated at 15kN.
  • Fall arrest and rope access anchor.

1 Rated 15kn

Multi-Directional 360

Concrete Roof

Product Information

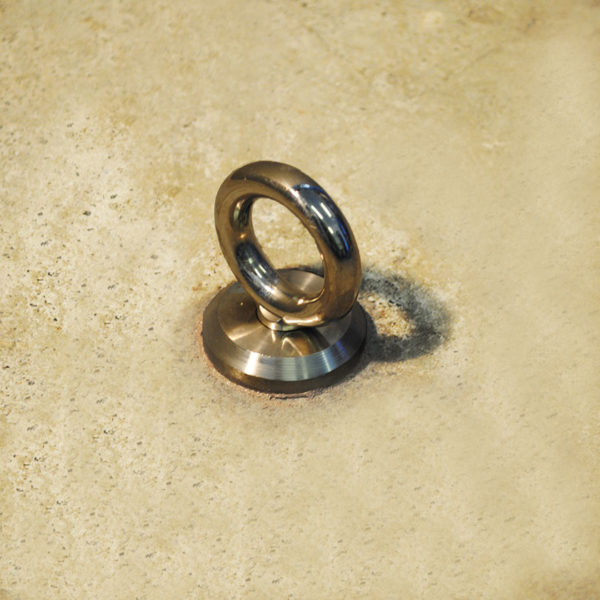

Swivelink Roof Anchor

SafetyLink’s patented SwiveLink is an anchor point used in concrete or steel column structures.

  • Non obtrusive concrete anchor designed to swivel 360 degrees.
  • Built in shock absorber.
  • Designed to be chemically anchored or bolted to steel.
  • Tested to Australian New Zealand Standards.

A perfect height safety equipment solution in our current climate protecting our investments and working at heights safely.

Product Components
Components
Product DescriptionQuantity
SwiveLink: Swivelling Unit 83mm: 316 S/Steel1

POSITIONING OF SWIVELINK ANCHOR POINT
(refer to appendix diagrams 2 and 3 of the Handbook)
The first anchor point must be in a position easily and safely reached by a secured ladder or a manhole access area.

INSPECT THE STRUCTURE FOR STRENGTH
Steel purlins must be a minimum 1.2mm gauge and be correctly secured in accordance with current Australian Building Codes.

If any doubt exists as to the strength of the structure an engineer should make the assessment.
