TUFF POST MOUNTED INTO CONCRETE WITH RETRO EYEBOLT

Product Code: TUFF-POST900R-C-RET
What am I used for?

Tuff Post is designed to raise the height of a height safety system using a 900mm tuff post.

  • Tuff Post 900 raises system 900mm off the ground.
  • Tuff Post with Retro Eyebolt.
  • Energy absorbing roof anchor.
  • Installs onto minimum concrete thickness 150mm.
  • Suits positions like garden beds on roof tops.
  • Must be chemically fastened (Chemical Adhesive).
  • Made from 316 stainless steel.
  • Fall arrest and rope access anchor.

1 Rated 15kn

Multi-Directional 360

Concrete Roof

Product Information

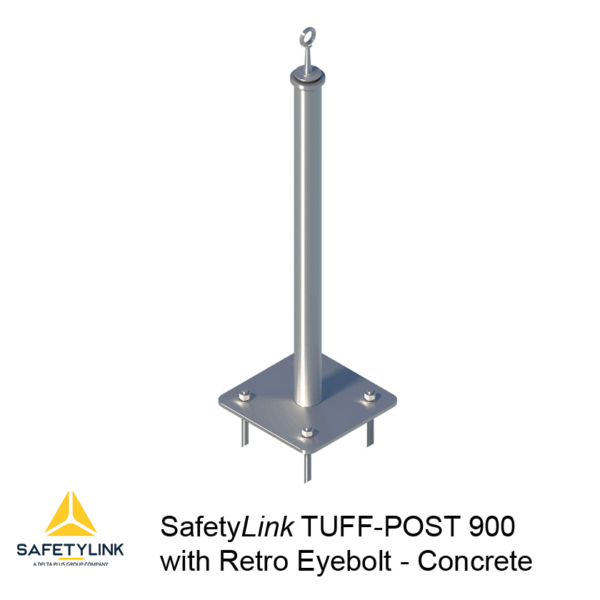

SAFETYLINK TUFF POST 900 WITH RETRO EYEBOLT

SafetyLink’s Tuff Post is designed to raise the height of a height safety system.

SafetyLink has a new member to the Tuff Post family, the 900mm Tuff Post. Like the 150mm, 300mm and 600mm Tuff-Posts the 900mm is also a sealed unit made entirely from stainless steel. Designed to be submerged into garden beds, water and other mediums.

The Tuff Post is used in conjunction with a SafetyLink lifeline or eyebolt system, the system can also be mounted into overhead steelwork, where the system needs lowering through false ceilings.

The 900mm Tuff Post raises the height of the system enabling the system to protrude above garden beds, parapet walls, solar panels, air conditioning systems and any other obstacles located on the roof. This enables the user or users to walk freely, reducing entanglement with obstacles.

The Tuff Post can be installed into steel or concrete structures. All our Tuff Posts are designed to install onto minimum 150mm concrete slab thickness, which cater to local and global building designs/structures.

Product Components
Components
Product Code Product Description Quantity
EYEBOLT-RETRO Retro Eyebolt with O-Ring & M20 Washer 1
RETRO-WASHER Retro Stainless Steel Washer with Foam 1
TUFF-POST900R TUFF-POST 900mm (Round) 1
CON-M16x160 Anchor Rod M16x160, Spring Washer, Nut& Washer 4
