SafetyLink Tuff Post | Raise Height Safety System

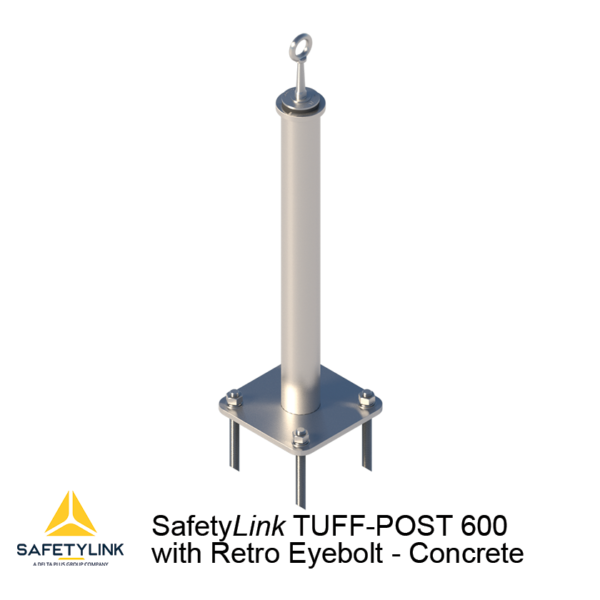

TUFF POST MOUNTED INTO CONCRETE WITH RETRO EYEBOLT

Product Code: TUFF-POST600R-C-RET

What am I used for?

Tuff Post is designed to raise the height of a height safety system using a 600mm tuff post.

Tuff Post 600 raises system 600mm off the ground.
Tuff Post with Retro Eyebolt.
Energy absorbing roof anchor.
Installs onto minimum concrete thickness 150mm.
Suits positions like garden beds on roof tops.
Must be chemically fastened (Chemical Adhesive).
Made from 316 stainless steel.
Fall arrest and rope access anchor.

Product Information

SAFETYLINK TUFF POST 600 WITH RETRO EYEBOLT

SafetyLink’s Tuff Post is designed to raise the height of a height safety system.

The Tuff Post can be used in conjunction with a horizontal lifeline or individual roof anchor.

SafetyLink’s RetroLink is installed onto the Tuff Post creating a fall arrest / rope access anchor. It is designed to bend like a fishing pole reducing the load back on the structure and the person attached to the anchor.

The Tuff Post can be installed into steel or concrete structures. All our Tuff Posts are designed to install onto minimum 150mm concrete slab thickness, which cater to local and global building designs/structures.

Product Components

Components

Product Code	Product Description	Quantity
EYEBOLT-RETRO	Retro Eyebolt with O-Ring & M20 Washer	1
RETRO-WASHER	Retro Stainless Steel Washer with Foam	1
TUFF-POST600R	TUFF-POST 600mm (Round)	1
CON-M16x160	Anchor Rod M16x160, Spring Washer, Nut& Washer	4
