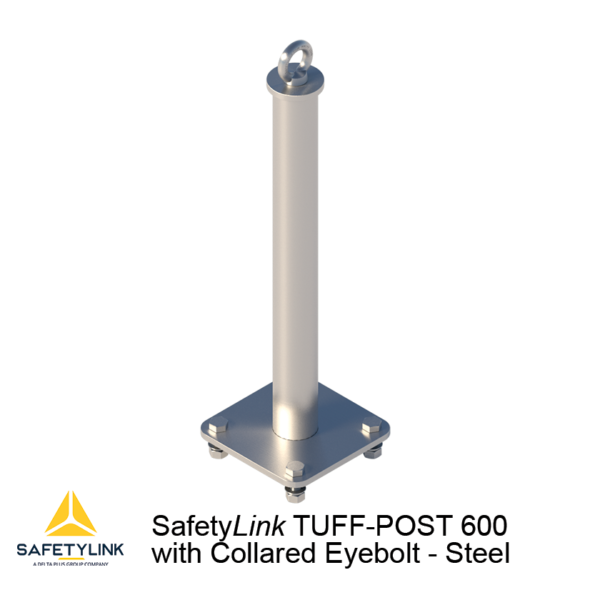

TUFF POST MOUNTED INTO STEEL WITH COLLARED EYEBOLT

Product Code: TUFF-POST600R-S-COL
What am I used for?

Tuff Post is designed to raise the height of a height safety system using a 600mm tuff post.

  • Tuff Post 600 raises system 600mm off the ground.
  • Tuff Post with Collared Eyebolt.
  • Energy absorbing roof anchor.
  • Suits positions like garden beds on roof tops.
  • Mounted into steel.
  • Made from 316 stainless steel.
  • Fall arrest and rope access anchor.

1 Rated 15kn

Multi-Directional 360

C or Z Purlin

Rope Access

Product Information
SAFETYLINK TUFF POST 600 WITH COLLARED EYEBOLT

SafetyLink’s Tuff Post is designed to raise the height of a height safety system, we have two sizes to choose from either 150mm Tuff Post, 300mm Tuff Post or 600mm Tuff Post.

The Tuff Post can be used in conjunction with a horizontal lifeline or individual roof anchor.

SafetyLink’s RetroLink is installed onto the Tuff Post creating a fall arrest / rope access anchor. It is designed to bend like a fishing pole reducing the load back on the structure and the person attached to the anchor.

Product Components
Components
Product Code Product Description Quantity
EYEBOLT M16x26mm Collared Eyebolt: M16x26mm 1
WASHER M16_SPRING Spring Washer: M16 1
TUFF-POST600R TUFF-POST 600mm (Round) 1
CON-M16x160 Anchor Rod M16x160, Spring Washer, Nut& Washer 4
BOLT-M16x50mm-SS Bolt: M12x50mm Set Screw (Length TBC) 4
WASHER M16 Washer: M16 4
SPRING WASHER M16 Spring Washer: M16 4
NUT M16_316 Nut: M16 4
