SAFETYLINK TUFF POST MOUNTED INTO STEEL WITH COLLARED EYEBOLT

Product Code: TUFF-POST150R-S-COL
What am I used for?

Tuff Post is designed to raise the height of a height safety system using a 150mm tuff post.

  • Tuff Post 150 raises system 150mm off the ground.
  • Energy absorbing roof anchor.
  • Suits positions like garden beds on roof tops.
  • Mounted into steel.
  • Made from 316 stainless steel.
  • Fall arrest and rope access anchor.

1 Rated 15kn

Multi-Directional 360

C or Z Purlin

Rope Access

Product Information

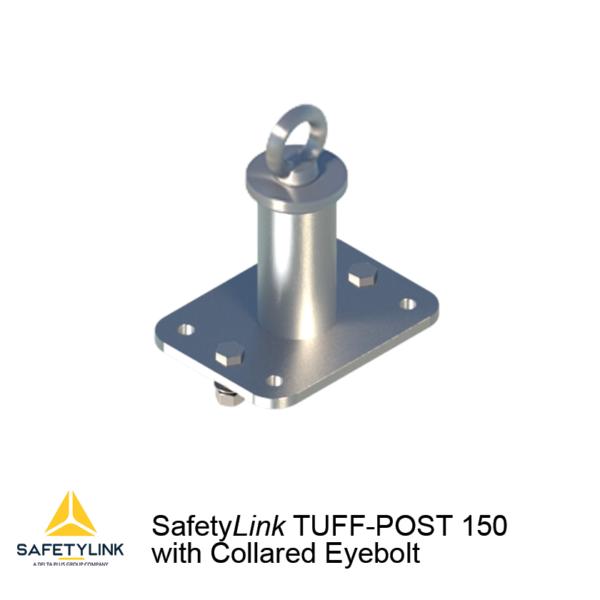

SAFETYLINK TUFF POST 150 WITH COLLARED EYEBOLT

SafetyLink’s Tuff Post is designed to raise the height of a height safety system, we have two sizes to choose from either 150mm Tuff Post, 300mm Tuff Post or 600mm Tuff Post.

The Tuff Post can be used in conjunction with a horizontal lifeline or individual roof anchor.

SafetyLink’s Collared Eyebolt is installed onto the Tuff Post creating a fall arrest / rope access anchor. It is designed to bend like a fishing pole reducing the load back on the structure and the person attached to the anchor.

Product Components
Components
Product Code Product Description Quantity
EYEBOLT M16x26mm Collared Eyebolt: M16x26mm 1
WASHER M16_SPRING Spring Washer:M16 1
TUFF-POST150R Tuff Post 150mm (Round) 1
BOLT-M12x50mm-SS Bolt: M12x50mm Set Screw 2
SPRING WASHER M12 Spring Washer: M12 2
WASHER M12 Washer: M12 2
NUT M12_316 Nut: M12 2
