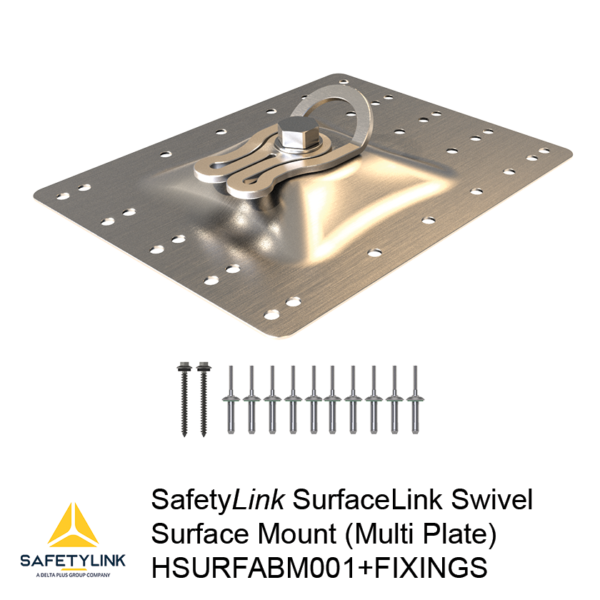

- SurfaceLink ABSEILING ANCHOR suits a multitude of roof profiles.
- Needs to be secured with 8x 8mm Rivets and 2x Hex Head Screws.
- The building or structure for the anchorages must be assessed by an engineer, unless it is clear to a competent person that the structure is adequate.
STANDARDS – Complies with AS/NZS 1891.4 and AS/NZS 5532-2013.
IMPORTANT NOTICE: Size 14.10x80mm All-Thread Hex Head Screws are supplied but if they don’t penetrate the batten by a minimum of 35mm, longer screws need to be used.
WHAT AM I USED FOR? An anchor point designed for use on metal roof sheet profiles where access to timber is difficult. Adjustable design to suit different roof profiles.
