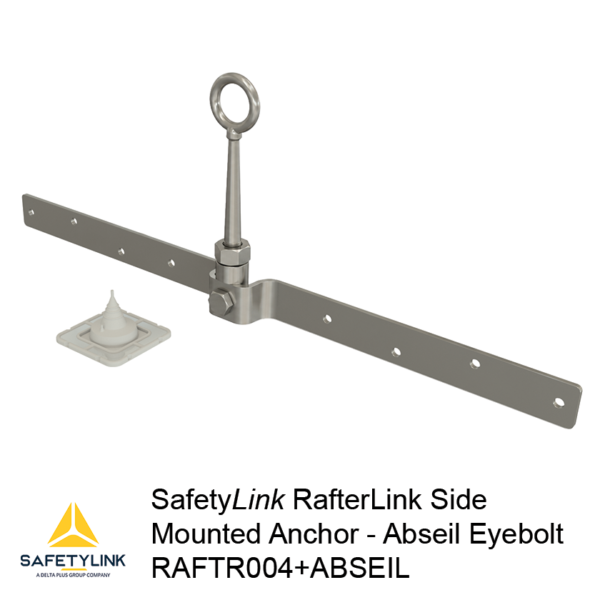

Side Mounted Rafterlink - Safetylink Rafter Mounted Roof Anchor

Product Code: RAFTR004 with abseil eyebolt
What am I used for?

An anchor point designed for use on timber structures where there is easy access to the underside of the roof. Installs onto the side of Rafter.

  • Designed for use on timber structures where there is easy access to the underside of the roof.
  • Can be used for abseiling if installed with a SafetyLink Abseil Eyebolt.
  • Multi-directional fall protection.
  • Complies with AS/NZS 1891.4.
  • Single person roof anchor, rated at 15kN.

1 Rated 15kn

Multi-Directional 360

Metal Roof

Tile Roof

Rope Access

Product Information
Side Mounted Rafterlink Roof Anchor

An anchor point designed for use on timber structures where there is easy access to the underside of the roof. Installs onto the side of Rafter.

SafetyLink designs and manufactures height safety equipment roof anchors and lifeline systems which provides restraint and fall arrest safety for all buildings and industrial sites, from a series of roof anchor points to a complete network of systems for maintenance, cleaning, access and inspections where working at heights.

SafetyLink’s team designed the RafterLink with unique energy absorbing capabilities, to reduce the risk of injury to the person and damage to the structure.

A permanent roof anchor point designed for use on timber structures, the RafterLink can be purchased in a variety of configurations suitable for positioning on the top, side, and ridge of a timber rafter.

The RafterLink complete unit includes SafetyLink’s patented Standard Eyebolt. The Standard Eyebolt is designed for fall arrest, it’s long tapered stem is designed to absorb energy while arresting a fall therefore reducing the load off the structure and the person attached to the anchor. The length of the eyebolt also enables the eyebolt to protrude above the roof structure when installing into timber structures.

SafetyLink’s patented Abseil Eyebolt can also be adapted to the RafterLink forming an anchor from where you can abseil, creating a safe work station for hard to get to maintenance on buildings.

The RafterLink is a multi-directional anchor, a perfect height safety equipment solution in our current climate protecting our investments and working at heights safely.

Product Components
Components
Product DescriptionQuantity
Rubber Hat Washer 75mm1
RafterLink Base 0 Degree Pitch with Adapter 304SS1
Eyebolt: 316 Stainless Steel with Locking Hex Nut1

POSITIONING OF RAFTERLINK ANCHOR POINT
(refer to appendix diagrams 2 and 3 of the Handbook)
The first RafterLink anchor point must be in a position easily and safely reached by a secured ladder or a manhole access area.

INSPECT THE TIMBER FOR STRENGTH
Install anchors only to timber strong enough to support the anchor point. Minimum timber size is 35mm by 90mm (grade F5). Inspect the timber for splits, cracks, knots and white ant damage. Ensure the timber structure is secured in accordance with Australian Building Codes.

RafterLink can be used with both the standard and abseiling eyebolts, the abseiling eyebolt is required on pitches greater than 30 degrees.
