Product Code: STAT.FROGRET001_EXT
What am I used for?

A horizontal lifeline system to be mounted into metal roof sheeting and steel purlin construction.

  • Energy absorbing horizontal lifeline.
  • Specifically for use with permanent horizontal height safety lifeline systems.
  • Extension 35mm.
  • Extension 55mm and 90mm also available.
  • Suits roof pitches up to 25 degrees.
  • Constructed entirely of 316 stainless steel with foam barrier tape.
  • Designed to be mounted into various metal profile roof sheeting with steel purlin construction.
  • Equipped with an engineered energy absorbing region to minimise loads on users and structures in the event of a fall.
  • Intended for use with 8mm stainless steel cables.
  • The FrogLine has been rigorously tested and manufactured in accordance with Australia and New Zealand Standard AS/NZS 1891.2, American Standard ANSI Z359.6-2009, European Standards EN 795:2012 and CEN/TS 16415:2013.

4 max Per System

2 max Per Span

Multi-Directional 360

C Or Z Purlin

Product Information

The FrogLine’s low profile design combines effortless energy absorbing capabilities into every intermediate, end and corner anchor, consequently incorporating the line energy absorbers into the system. This inventive approach ensures our FrogLine systems are always installed with the maximum energy absorption possible regardless of the line length.

Product Components
Product Code Product Description

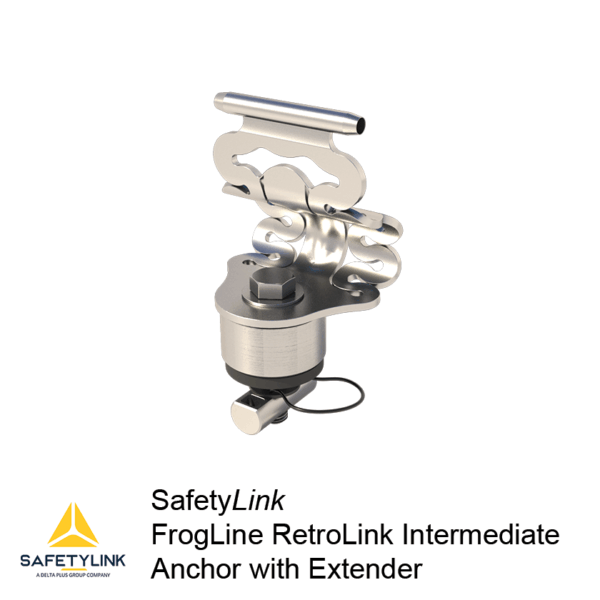

STAT.FROGRET001_EXT FrogLine RetroLink Intermediate Anchor With 35mm Extender

The building or structure for the anchorages must be assessed by an engineer, unless it is clear to a competent person that the structure is adequate.

Maximum user per system is Four (4).
Maximum person per span is Two (2).
See system information for site specific use.
