- TUFF-POST is designed to raise a height safety system.
- TUFF-POST is a sealed unit made entirely from stainless steel.
- Suitable for use in garden beds and wet environments. Designed to be anchored into concrete.
- Can be chemically or mechanically fastened, recommended chemical is Fischer FIS-V or FAZ II Plus.
- The TUFF-POST is rated to 15kN.
- The TUFF-POST can be used to raise a single point Anchor, FrogLine or X-Rail system. (Chemical Adhesive).
- This product is suitable for abseil.
- The building or structure for the anchorages must be assessed by an engineer, unless it is clear to a competent person that the structure is adequate.

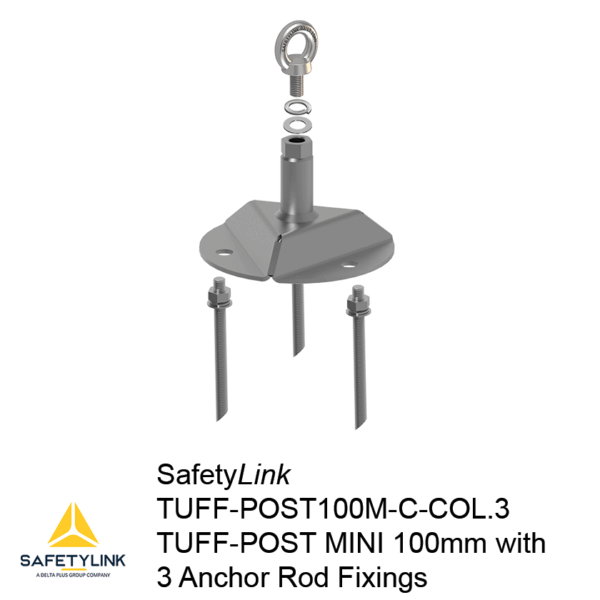

SAFETYLINK TUFF POST MINI 100mm- 3 Rod Fixings
Product Code: TUFF-POST100M-C-COL.3
What am I used for?
Product Information
SAFETYLINK TUFF POST MINI 100mm - 3 Bolt Fixings
SafetyLink’s Tuff Post is designed to raise the height of a height safety system.
The Tuff Post can be used in conjunction with a horizontal lifeline or individual roof anchor.
The Tuff Post can be installed into steel or concrete structures. All our Tuff Posts are designed to install onto minimum 150mm concrete slab thickness, which cater to local and global building designs/structures.
Product Components
Components
| Product Code | Product Description | Quantity |
|---|---|---|
| EYEBOLT M16x26mm | Collared Eyebolt: M16x26mm | 1 |
| WASHER M16_Spring_316 | Spring Washer: M16 | 1 |
| WASHER M16_316 | Washer: M16 316SS | 1 |
| TUFF-POST100M | TUFF-POST MINI 100mm | 1 |
| CON-M12x130mm | Anchor Rod M12x130mm | 3 |
