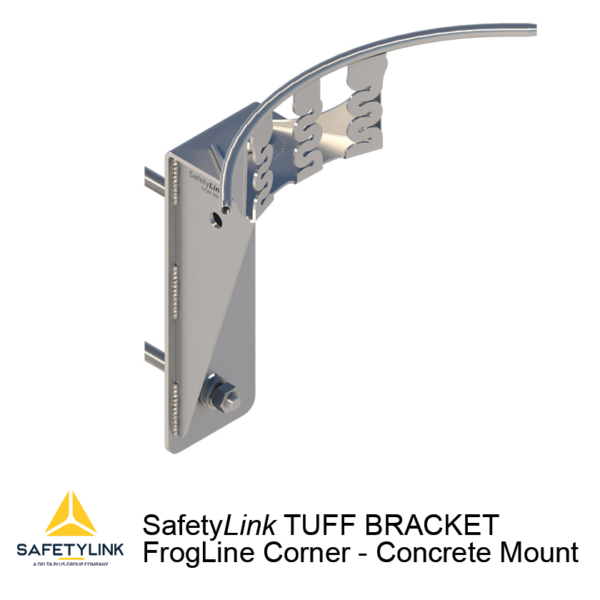

SAFETYLINK CORNER TUFF BRACKET MOUNTED INTO CONCRETE

Product Code: STAT.FROGTUFF003C-BRKT
What am I used for?

The Tuff Bracket’s design enables easy installation requiring only one size bracket to fit all size garden bed/parapet walls.

Testing the tuff bracket is done via side access, reducing testing/certifying times as fewer garden materials need clearing.

The Tuff Bracket can be used in conjunction with a SafetyLink lifeline, X-Rail horizontal lifeline or eyebolt system.

  • Designed to raise the height of a height safety system off the ground in garden beds on roof tops.
  • The Tuff Bracket fits all garden bed/parapet wall sizes (one size fits all).
  • Install to 150mm minimum wall thickness.
  • Can be used for live load (abseiling).
  • Designed to be installed into Concrete with DonutLink accessories.
  • Side access for testing in concrete, with testing done in situ (using DonutLink adapter) no need for dismantling.
  • Made from 316 Stainless Steel.

4 max Per System

Multi-Directional 360

Product Information
SAFETYLINK CORNER TUFF BRACKET MOUNTED INTO CONCRETE

The Tuff Bracket’s design enables easy installation requiring only one size bracket to fit all size garden bed/parapet walls.

Testing the tuff bracket is done via side access, reducing testing/certifying times as fewer garden materials need clearing.

The Tuff Bracket can be used in conjunction with a SafetyLink lifeline, X-Rail horizontal lifeline or eyebolt system.

Product Components
Components
Product Code Product Description Quantity
FROGLINE CNR FrogLine Base Corner 1
BOLT-M16x50mm-SS Bolt: 16mm x 50mm Set Screw 1
WASHER M16_316 Washer: M16 1
WASHER M16_SPRING Spring Washer: M16 1
NUT M16_316 Nut: M16 1
TUFF-BRKT01 Tuff Bracket 1
WASHER M16_DONUT Washer: DonutLink M16 1
CON-M16x160 Anchor Rod M16x160, M16 Nut, M16 Spring Washer & M16 Washer 4
