HORIZONTAL LIFELINE FROGLINE - STEEL MOUNTED EXTENDED INTERMEDIATE

Product Code: STAT.FROGSTE008
What am I used for?

A horizontal lifeline system designed to be mounted into steel construction.  Intermediate anchor designed to be mounted into steel structures to limit lifeline span distances. Longer tube to enable bending to suit small degree changes in the line.

  • Energy absorbing horizontal lifeline anchor point.
  • Specifically for use with permanent horizontal height safety lifeline systems.
  • Suits roof pitches up to 25 degrees.
  • Constructed entirely of 316 stainless steel.
  • Designed to be mounted into steel construction.
  • Equipped with an engineered energy absorbing region to minimise loads on users and structures in the event of a fall.
  • Intended for use with 8mm stainless steel cables.
  • The FrogLine has been rigorously tested and manufactured in accordance with Australia and New Zealand Standard AS/NZS 1891.2, American Standard ANSI Z359.6-2009, European Standards EN 795:2012 and CEN/TS 16415:2013.

4 max Per System

2 max Per Span

Multi-Directional 360

C Or Z Purlin

Product Information
HORIZONTAL LIFELINE FROGLINE STEEL

Introducing the FrogLine Lifeline. Based on the sound engineering principles of the patented FrogLink anchor point, SafetyLink’s patented FrogLine horizontal lifeline is in a class of its own.

Product Components
Components
Product CodeProduct Description

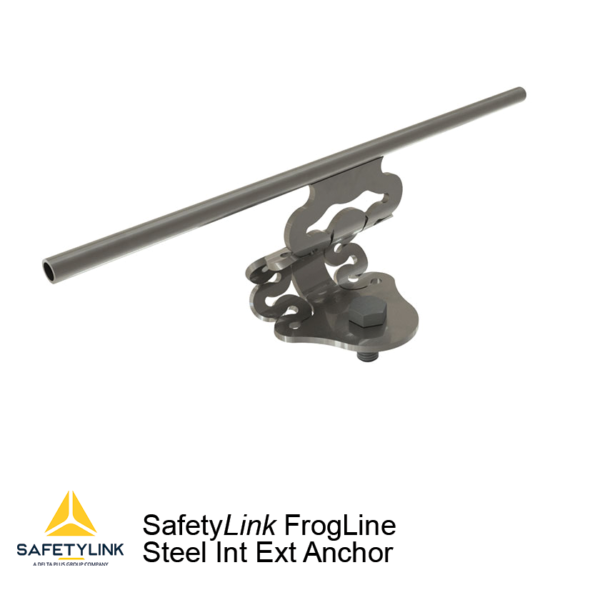

STAT.FROGSTE008FrogLine Steel Mounted Intermediate Extended Anchor

The building or structure for the anchorages must be assessed by an engineer, unless it is clear to a competent person that the structure is adequate.

Maximum user per system is Four (4).
Maximum person per span is Two (2).
See system information for site specific use.
