HORIZONTAL LIFELINE FROGLINE - STEEL MOUNTED CORNER

Product Code: STAT.FROGSTE003
What am I used for?

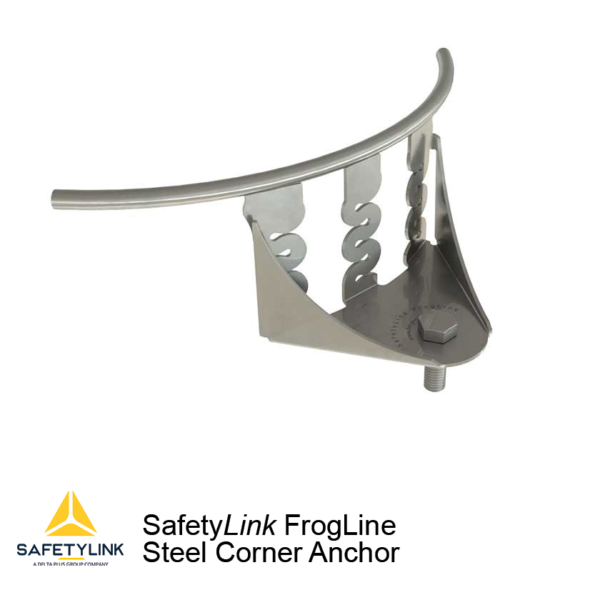

A horizontal lifeline system designed to be mounted into steel construction.  Corner anchor designed to be mounted into steel structures.The lifeline cable runs through the corner anchor point re-directing it by up to 90 degrees.

  • Energy absorbing horizontal lifeline anchor point.
  • Specifically for use with permanent horizontal height safety lifeline systems.
  • Suits roof pitches up to 25 degrees.
  • Constructed entirely of 316 stainless steel.
  • Designed to be mounted into steel construction.
  • Equipped with an engineered energy absorbing region to minimise loads on users and structures in the event of a fall.
  • Intended for use with 8mm stainless steel cables.
  • The FrogLine has been rigorously tested and manufactured in accordance with Australia and New Zealand Standard AS/NZS 1891.2, American Standard ANSI Z359.6-2009, European Standards EN 795:2012 and CEN/TS 16415:2013.

4 max Per System

2 max Per Span

Multi-Directional 360

C Or Z Purlin

Product Information
HORIZONTAL LIFELINE FROGLINE STEEL

Introducing the FrogLine Lifeline. Based on the sound engineering principles of the patented FrogLink anchor point, SafetyLink’s patented FrogLine horizontal lifeline is in a class of its own.

Product Components
Components
Product Code Product Description Quantity
FROGLINE CNR FrogLine Base Corner 1
BOLT-M16x50mm-SS Bolt: 16mm x 50mm Set Screw 1
WASHER M16_316 Washer: M16 1
WASHER M16_SPRING Spring Washer: M16 1
NUT M16_316 Nut: M16 1

The building or structure for the anchorages must be assessed by an engineer, unless it is clear to a competent person that the structure is adequate.

Maximum user per system is Four (4).
Maximum person per span is Two (2).
See system information for site specific use.
