- Skylight crossover is used to cross skylight roof sheeting.
- Custom fabrication – request lead time.
- FastFit skylights are manufactured to AS 1657:2018 Standards.
Product Information

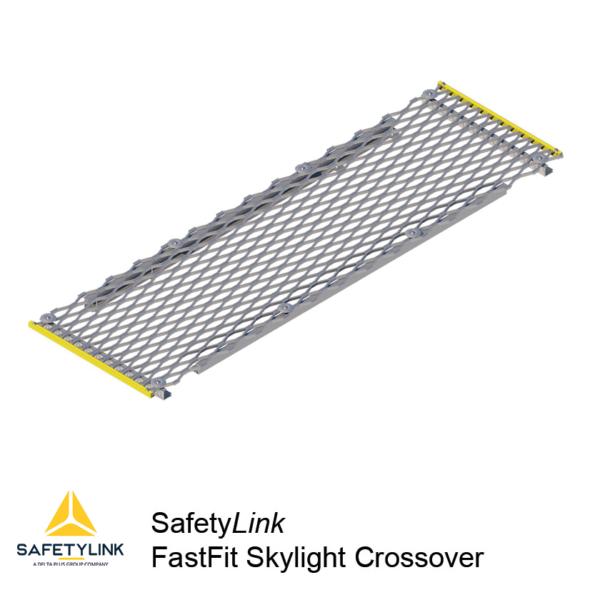

Skylight Crossover
- Skylight crossover is used to cross skylight roof sheeting.
- Custom fabrication – request lead time.
- FastFit skylights are manufactured to AS 1657:2018 Standards.
Product Components
Components
| COMPLETE UNIT – PRODUCT CODE: GUARD_SKYW.1 |
|||
|---|---|---|---|
| Product Code | Product Description | Material |
Qty |
| CUT:GUARD_WALK.CHL | WALKWAY SUPPORT CHANNEL, WALKWAYS, LENGTH 1500mm | Aluminium | 2 |
| CUT:GUARD_WALK.CHL | WALKWAY SUPPORT CHANNEL, WALKWAYS, LENGTH 600mm | Aluminium | 2 |
| CUT: AL_GRATING 13mm | 13MM 600 X 6000MM WALKWAY GRATING, LENGTH 2000mm | Aluminium | 1 |
| GUARD_END.Y.595 | GRATING END BAR – YELLOW, 595mm | Aluminium | 2 |
| FOAM-TAPE-SQUARE | FOAM SEAL 40X40X1.6mm | EPDM | 12 |
| AL_GRATING DISC | WALKWAY GRATING WASHER | Aluminium | 8 |
| RIVET_5x22mm | 5.2X22mm BULBTITE RIVET | Aluminium | 12 |
| SCREW 12-14X35mm | SCREW 12G-14 X 35MM CL3 STEEL H/H TEK SCREW | Galvanised | 8 |
| SCREW 12-14X20mm | SCREW 12G-14 X 20MM CL3 STEEL H/H TEK SCREW | Galvanised | 4 |
