- Single Walkway Post Kit – Flat Walkway.
- Walkway Post Kit for use in Single Guardrail Flat Starting and Repeating Kits (GUARDK151 & GUARDK152).
- Suitable for roof pitches 0 to 7 degrees.
- Maximum spacing between posts is 2.3 metres.
- FastFit Guardrail and Walkways are manufactured to AS 1657:2018 Standards.
FASTFIT GUARDRAIL SYSTEMS - POST KIT

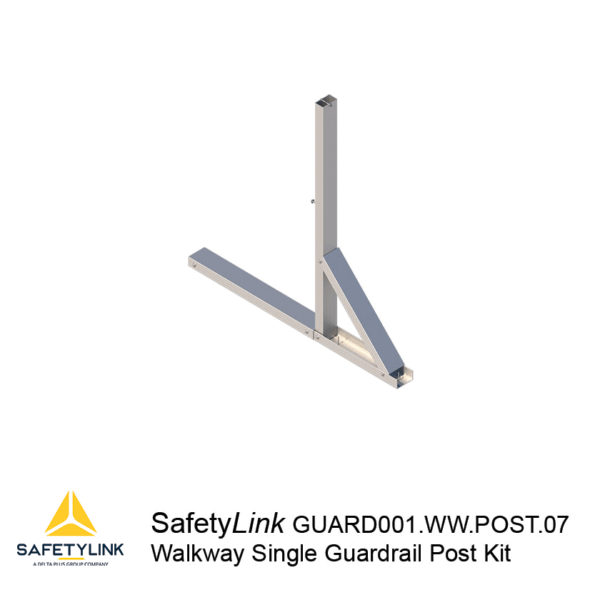

Single Walkway Post Kit - Flat Walkway
Product Code: GUARD001.WW.POST.07
What am I used for?
Product Information
FASTFIT GUARDRAIL SYSTEMS
- Single Walkway Post Kit – Flat Walkway.
- Walkway Post Kit for use in Single Guardrail Flat Starting and Repeating Kits (GUARDK151 & GUARDK152).
- Suitable for roof pitches 0 to 7 degrees.
- Maximum spacing between posts is 2.3 metres.
- FastFit Guardrail and Walkways are manufactured to AS 1657:2018 Standards.
Product Components
Components
| Product Code | Product Description | Material |
Qty |
|---|---|---|---|
| GUARD001.WW.POST.07.01 | Single Post Walkway Kit | Aluminium | 1 |
| SCREW 12-14x20mm | Screw: 12-14 x 20mm Self Tapping Tek Screw | Galvanised | 12 |
| SCREW 12-14x50mm | Screw: 12-14 x 50mm Self Tapping Tek Screw | Galvanised | 2 |
| RIVET_5x22mm | Tri-fold Rivets 5.0x22mm | Aluminium | 4 |
| FOAM-TAPE-SQUARE | Foam Tape: 40mm x 40mm x 1.6mm | EPDM | 4 |
