- Walkway Post Kit – Roof Mount.

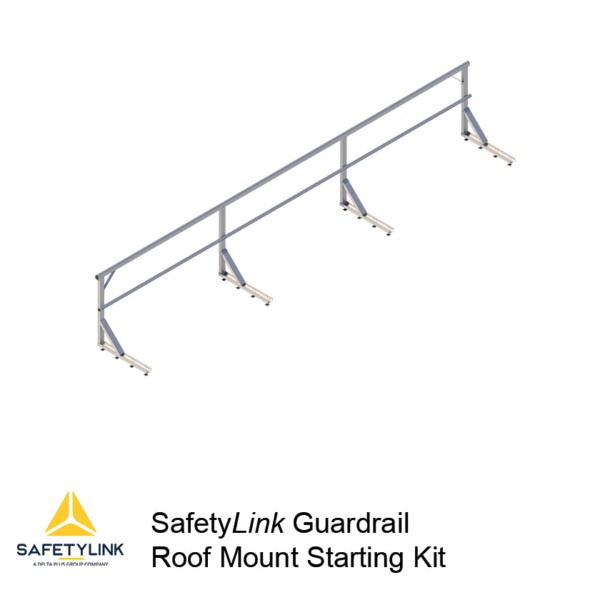

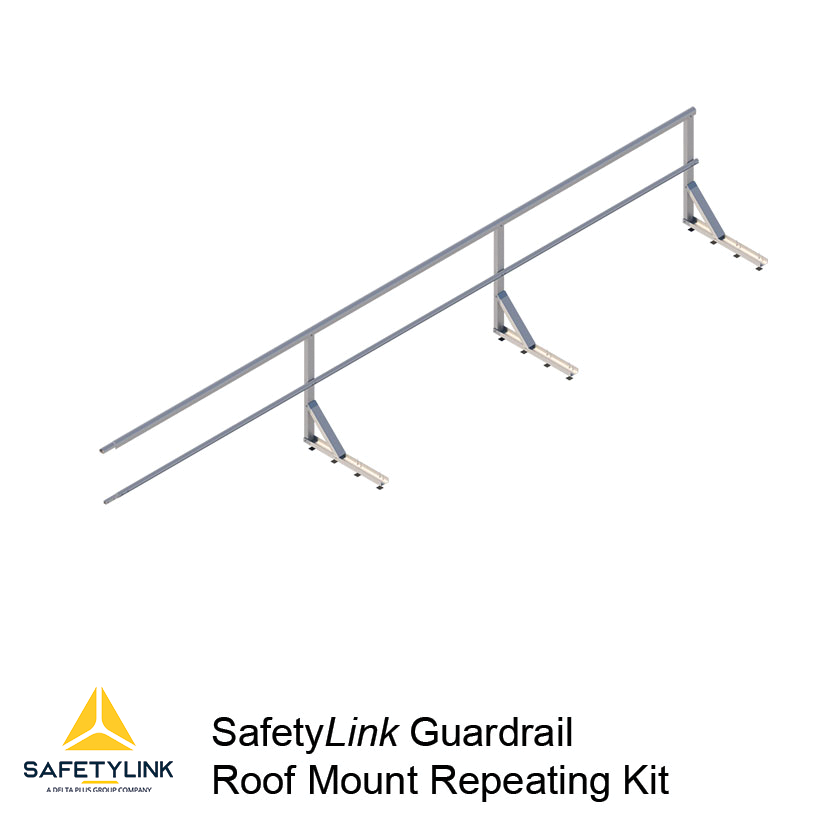

- Single Post Kit for Roof Mount Starting and Repeating Kit (GUARDK141 & GUARDK142).
- Suitable for custom made roof pitches 0 to 45 degrees, for roof pitch greater than 12 degrees, a second Kneerail is required.
- Maximum spacing between posts is 2.3 metres.
- FastFit Guardrail and Walkways are manufactured to AS 1657:2018 Standards.
FASTFIT GUARDRAIL SYSTEMS - POST KIT

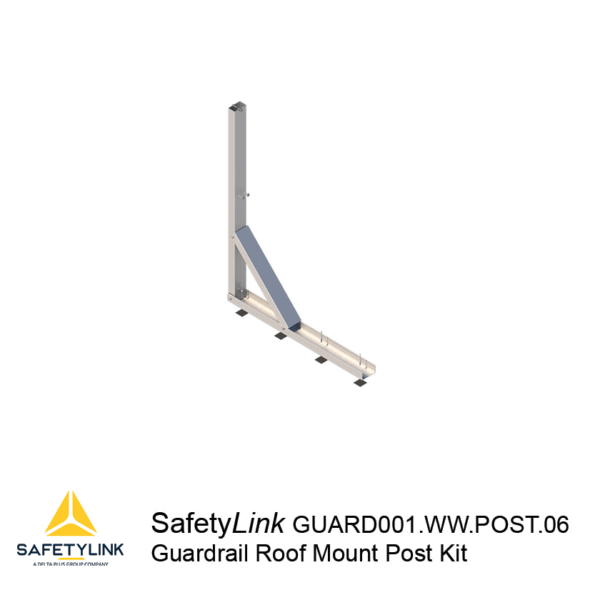

Walkway Post Kit - Roof Mount
Product Code: GUARD001.WW.POST.06
What am I used for?
Product Information
FASTFIT GUARDRAIL SYSTEMS
- Walkway Post Kit – Roof Mount.
- Single Post Kit for Roof Mount Starting and Repeating Kit (GUARDK141 & GUARDK142).
- Suitable for custom made roof pitches 0 to 45 degrees, for roof pitch greater than 12 degrees, a second Kneerail is required.
- Maximum spacing between posts is 2.3 metres.
- FastFit Guardrail and Walkways are manufactured to AS 1657:2018 Standards.
Product Components
Components
| Product Code | Product Description | Material |
Qty |
|---|---|---|---|
| GUARD001.WW.POST.06.01 | Single Post Walkway Kit | Aluminium | 1 |
| SCREW 12-14x20mm | Screw: 12-14 x 20mm Self Tapping Tek Screw | Galvanised | 8 |
| SCREW 12-14x50mm | Screw: 12-14 x 50mm Self Tapping Tek Screw | Galvanised | 2 |
| RIVET_5x22mm | Tri-fold Rivets 5.0x22mm | Aluminium | 4 |
| FOAM-TAPE-SQUARE | Foam Tape: 40mm x 40mm x 1.6mm | EPDM | 4 |
