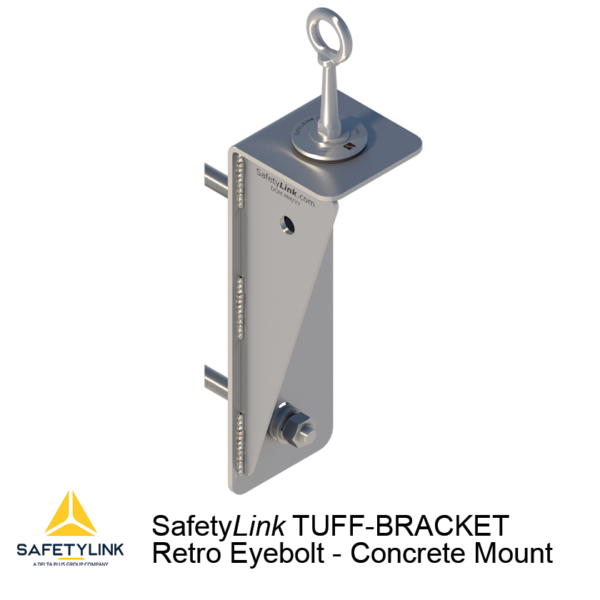

TUFF BRACKET WITH RETRO EYEBOLT MOUNTED TO CONCRETE WALL

Product Code: TUFF-BRKT-C-RET
What am I used for?

The Tuff Bracket’s design provides easy installation to concrete surfaces, using a single bracket to fit a multitude of safety systems.

  • Tuff Bracket with Retro Eyebolt.
  • Suitable for structural concrete fixing with a minimum of 150mm thickness and 150mm edge distance.
  • Designed for abseil and fall arrest safety systems.
  • Minimises potential waterproofing issues by mounting to the wall of the garden bed instead of the base.
  • Innovative design enables the safety system to be loaded both adjacent and across the concrete surface.
  • Must be installed using easy to use Fischer Concrete Injection Mortar, sold separately (Chemical Adhesive).
  • Made from 316 Stainless Steel.

1 Rated 15kn

Multi-Directional 360

Concrete Roof

Product Information
SAFETYLINK TUFF BRACKET WITH RETRO EYEBOLT

The Tuff Bracket’s design provides easy installation to concrete surfaces, using a single bracket to fit a multitude of safety systems.

  • Tuff Bracket with Retro Eyebolt.
  • Suitable for structural concrete fixing with a minimum of 150mm thickness and 150mm edge distance.
  • Designed for abseil and fall arrest safety systems.
  • Minimises potential waterproofing issues by mounting to the wall of the garden bed instead of the base.
  • Innovative design enables the safety system to be loaded both adjacent and across the concrete surface.
  • Must be installed using easy to use Fischer Concrete Injection Mortar, sold separately (Chemical Adhesive).
  • Made from 316 Stainless Steel.
Product Components
Components
Product Code Product Description Quantity
EYEBOLT-RETRO Eyebolt: Retro with O-Ring 1
WASHER M16 Washer: M16 1
WASHER M16_SPRING_316 Spring Washer: M16
NUT M16_316 Nut: M16 1
RETRO-WASHER Retro Washer: Stainless Steel and Foam
TUFF-BRKT01 Tuff Bracket 1
WASHER M16_DONUT Washer: M16 Donut 1
CON-M16x160 Anchor Rod M16x160, Spring Washer & Nut 2
