Safetylink FrogLink Surface Mounted To Plywood

Product Code: FROGL001+SCREWS
What am I used for?

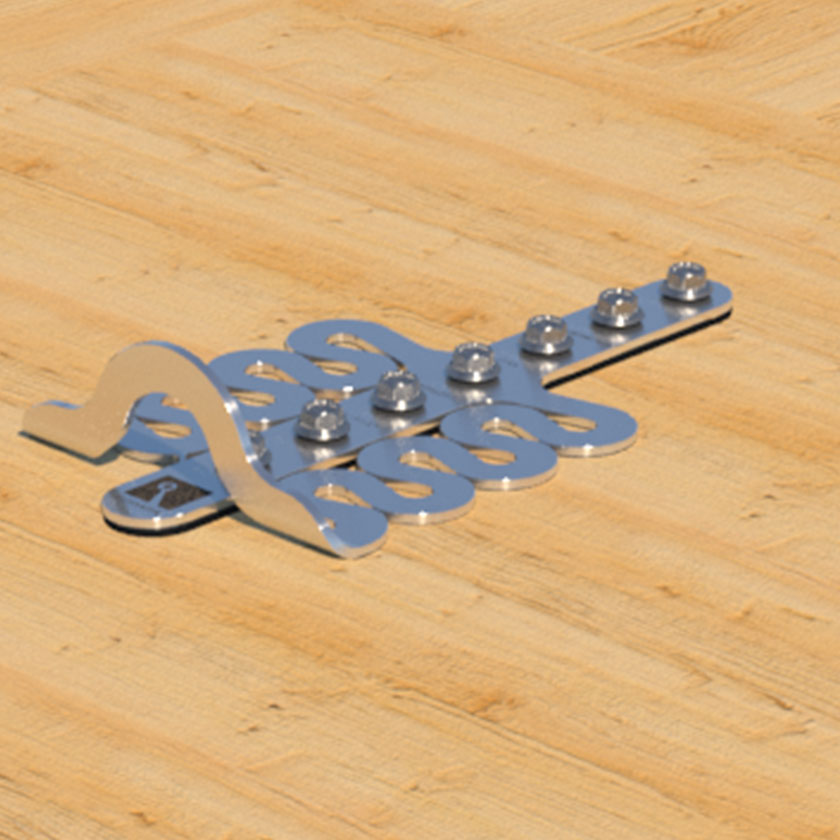

A height safety anchor point for use on Plywood roofs, will arrest from any direction.

  • Fast simple unit for installation, fall protection whilst working at heights.
  • Low profile reflective design is a plus for any commercial or residential enterprise wanting to maintain an aesthetically pleasing façade.
  • Dynamic design reduces the load back onto the structure and person attached to the anchor.
  • Install using seven 14 Gauge Roofing Screws 50mm long.
  • 316 Stainless steel construction.
  • Multi-directional fall protection.
  • Single person energy absorbing anchor, rated at 15kN.
  • Complies with AS/NZS 1891.4, AS/NZS 5532-2013, OSHA 1926.502 and (Plywood – ANSI Z359_18:2017).

1 Rated 15kn

Multi-Directional 360

Plywood Roof

Product Information
Froglink Roof Anchor

SafetyLink’s patented surface mounted FrogLink has set a new benchmark in the field of height safety. This revolutionary all in one unit has been designed to attach to plywood roof profiles with a single row of attachment holes. This unique configuration makes it a fast simple unit for installation, fall protection whilst working at heights.

Its low profile reflective design is a plus for any commercial or residential enterprise wanting to maintain an aesthetically pleasing façade.

The FrogLink doesn’t just look good; its dynamic design reduces the load back onto the structure and person attached to the anchor.

Product Components
Components
Product Code Product Description Quantity
FROGL001 FrogLink Unit 1

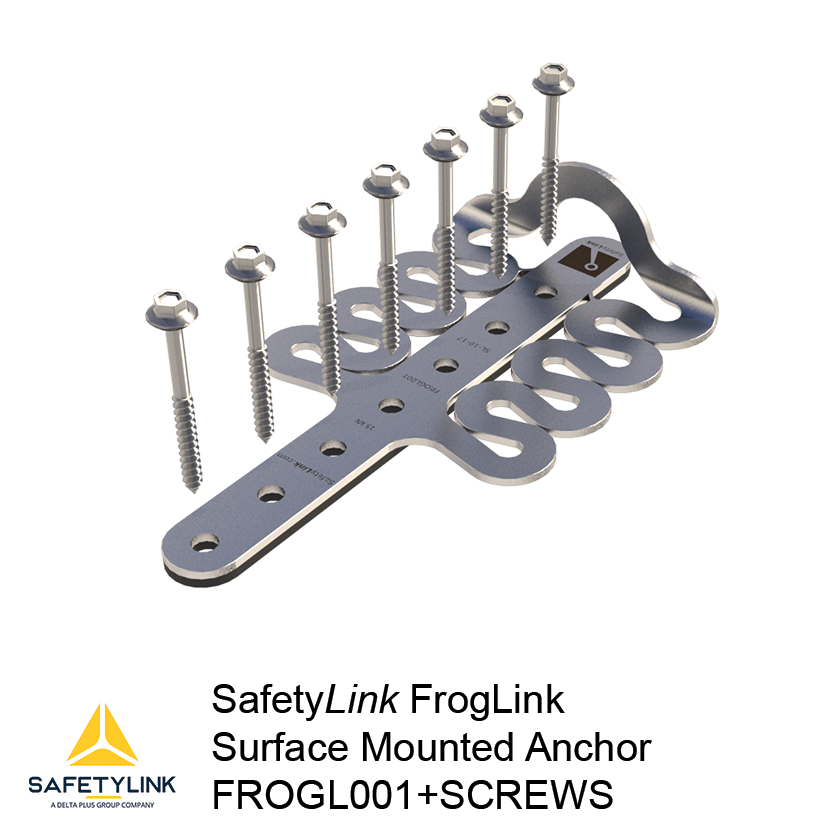

FROGL001+Screws FrogLink Unit with 7 x 14 Gauge Roofing Screws 50mm long 1
