- Essential entry point system to any height safety system.
- The Ladder Fascia Bracket is designed to stabilise your ladder stopping sideways movement and therefore holding the ladder in place safely.
- In addition the Ladder Fascia Bracket has two tie off points to aid in securing the ladder in position. Quick and easy installation to Fascia.
- LadderLinks are rated to 150kg and must only be installed to structures and fixings capable of supporting 150kg.

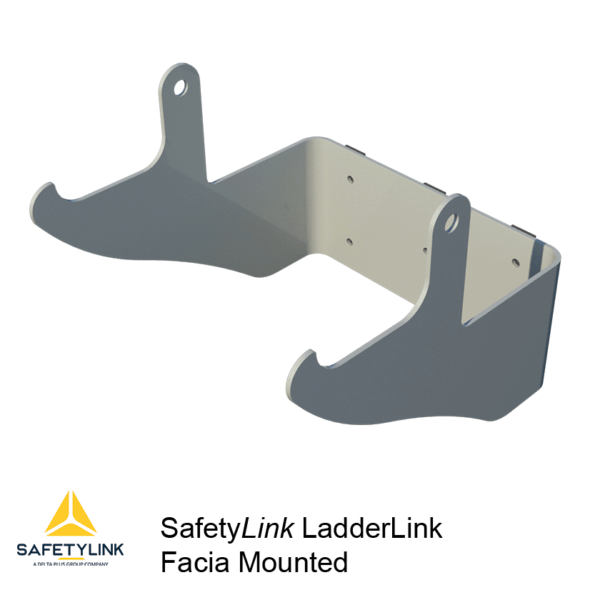

Safetylink Ladderink: Fascia Mounted
Product Code: LADFX008
What am I used for?
Product Information
Pole Ladderlink
- Essential entry point system to any height safety system.
- The Ladder Fascia Bracket is designed to stabilise your ladder stopping sideways movement and therefore holding the ladder in place safely.
- In addition the Ladder Fascia Bracket has two tie off points to aid in securing the ladder in position. Quick and easy installation to Fascia.
- LadderLinks are rated to 150kg and must only be installed to structures and fixings capable of supporting 150kg.
Product Components
Components
| Product Code |
Product Description | Quantity | Weight (kg) | Material |
|---|---|---|---|---|
|
LADFX008 |
Ladderink: Fascia Mounted | 1 | 1.046 | Marine Grade Aluminium |
INSTALLATION
Ensure Ladder Fascia Bracket is attached to suitable structure that can support the bracket and ladder. Secure with 5x fixings through mounting holes with appropriate fixings for structure.
– Timber 5 x 12g 50mm Roofing Screws.
– Metal 5 x 8mm Tri-fold Rivets.
