HORIZONTAL LIFELINE FROGLINE - CORNER SURFACE MOUNTED

Product Code: STAT.FROGSAL003
What am I used for?

An horizontal lifeline system designed to be mounted on the surface of a metal roof profile. Fitted where access to the underside of the roof structure is difficult to access.

  • Energy absorbing horizontal lifeline.
  • Specifically for use with permanent horizontal height safety lifeline systems, to be mounted on the surface of a metal roof profile.
  • Intended for use with 8mm stainless steel cables.
  • Suits pitches no greater than 25 degrees on a multitude of roof profiles.
  • Equipped with an engineered energy absorbing region to minimise loads on users and structures in the event of a fall.
  • The FrogLine has been rigorously tested and manufactured in accordance with Australia and New Zealand Standard AS/NZS 1891.2, American Standard ANSI Z359.6-2009, European Standards EN 795:2012 and CEN/TS 16415:2013.

4 max Per System

2 max Per Span

Multi-Directional 360

Metal Roof

Product Information
HORIZONTAL LIFELINE FROGLINE SURFACE MOUNTED

Introducing the FrogLine Lifeline. Based on the sound engineering principles of the patented FrogLink anchor point, SafetyLink’s patented FrogLine horizontal lifeline is in a class of its own.

Product Components
Components
Product CodeProduct Description

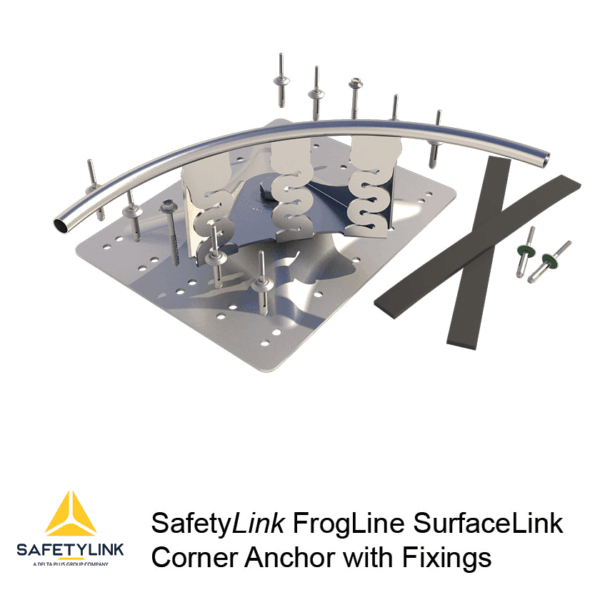

STAT.FROGSAL003FrogLine SurfaceLink Corner Anchor Aluminium Plate
STAT.FROGSAL003+FIXINGSFrogLine SurfaceLink Corner Anchor Aluminium Plate+FIXINGS

The building or structure for the anchorages must be assessed by an engineer, unless it is clear to a competent person that the structure is adequate.

Maximum user per system is Four (4).
Maximum person per span is Two (2).
See system information for site specific use.
