TUFF POST INTERMEDIATE MOUNTED OVERHEAD INTO STEEL 150mm

Product Code: STAT.FROGTUFF004S –150R
What am I used for?

Tuff Post is designed to give you greater flexibility for overhead applications.

  • TUFF-POST is designed to adjust the height of the Frogline Lifeline system from supporting structure.

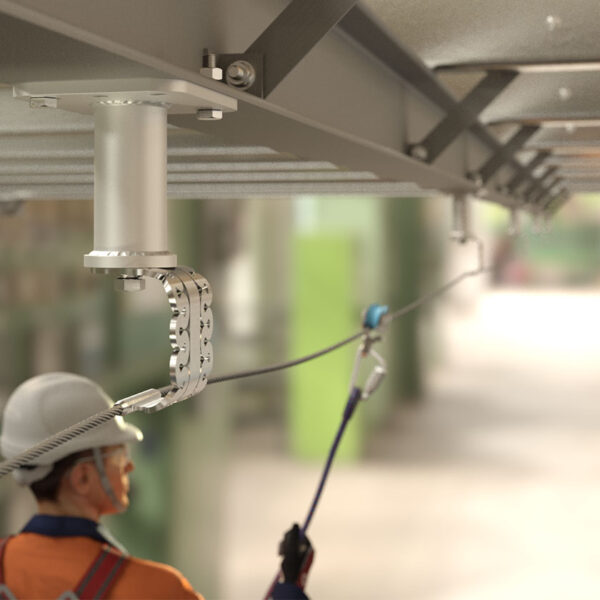

  • Designed to be mounted into overhead steel structure, where the lifeline needs lowering.
  • TUFF-POST is made entirely from 316 stainless steel.

4 max Per System

Multi-Directional 360

C Or Z Purlin

Product Information

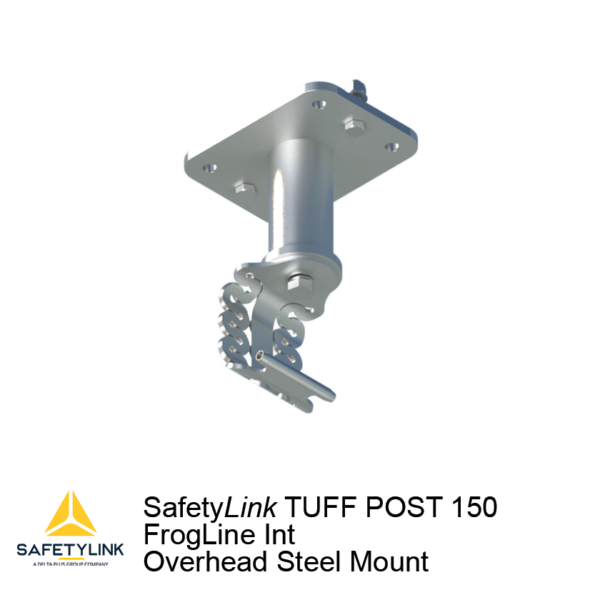

SAFETYLINK INTERMEDIATE TUFF POST MOUNTED OVERHEAD INTO STEEL

TUFF POST is a sealed unit made entirely from stainless steel. Designed to adjust the height of the Frogline Lifeline system from supporting structure.

The TUFF POST when installed with a lifeline is used with SafetyLink’s energy absorbing FrogLine Lifeline. The FrogLine Lifeline has advanced shock absorbing serpentines designed into each anchor with innovative built-in fall indicators. Therefore reducing the load off the structure and the person in the event of a fall.

Continuous connection with 8mm stainless steel cable, utilising the FrogLine Shuttle System, up-to four users per system, two per span.

Product Components
Components
Product Code Product Description Quantity
FROGLINE INT OH FrogLine Base Intermediate Overhead 1
BOLT-M16x50mm-SS Bolt: M16 x 50mm 1
WASHER M16 Washer: M16 1
WASHER M16_SPRING Spring Washer: M16 1
TUFF-POST150R TUFF-POST150mm(Round) 1
BOLT-M12x50mm-SS Bolt: M12 x 50mm Set Screw 2
WASHER M12 Washer: M12 2
WASHER M12 Spring Spring Washer: M12 2
NUT M12 Nut: M12 2
