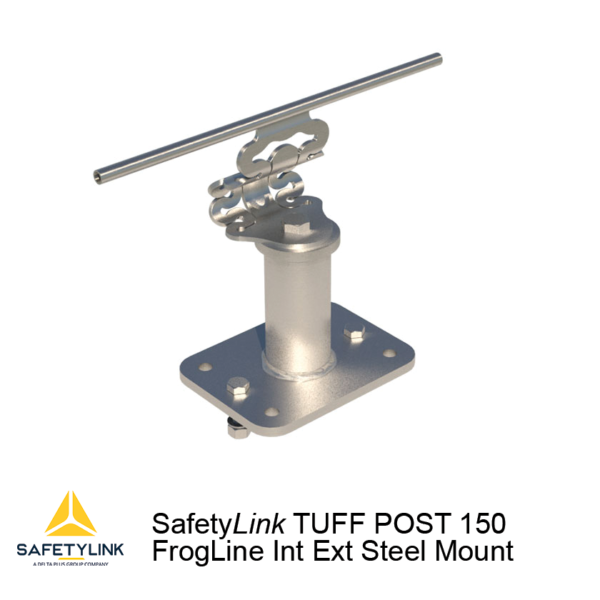

Tuff Post is designed to raise the height of a height safety system using a 150mm.
TUFF POST is designed to raise the height of a height safety system using either 150mm, 300mm or 600mm Tuff Post.
TUFF POST is a sealed unit made entirely from stainless steel. Designed to be submerged into garden beds, water and other mediums.
The TUFF POST when installed with a lifeline is used with SafetyLink’s energy absorbing FrogLine Lifeline. The FrogLine Lifeline has advanced shock absorbing serpentines designed into each anchor with innovative built-in fall indicators. Therefore reducing the load off the structure and the person in the event of a fall.
Continuous connection with 8mm stainless steel cable, utilising the FrogLine Shuttle System, up-to four users per system, two per span.
| Product Code | Product Description | Quantity |
|---|---|---|
| FROGLINE INT_EXT | FrogLine Base Intermediate Extended | 1 |
| BOLT-M16x50mm-SS | Bolt: 16mm x 50mm Set Screw | 1 |
| WASHER M20 | Washer: 20mm | 1 |
| O-RING | O-Ring Washer | 1 |
| TUFF-POST150R | TUFF-POST150mm(Round) | 1 |
| BOLT-M12x50mm-SS | Bolt: M12x50mm 316SS Set Screw | 2 |
| WASHER M12 | Washer: M12 316 | 2 |
| NUT NYLOC M12_316 | Nut: M12 316 | 2 |
The building or structure for the anchorages must be assessed by an engineer, unless it is clear to a competent person that the structure is adequate.
Maximum user per system is Four (4).
Maximum person per span is Two (2).
See system information for site specific use.
