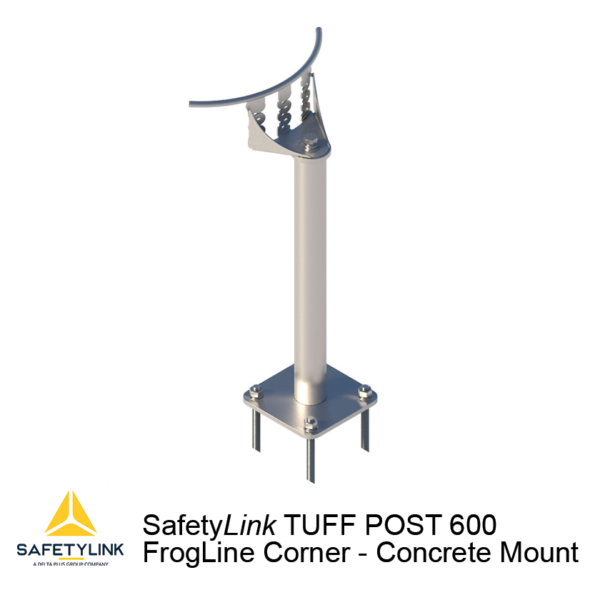

SAFETYLINK CONCRETE TUFF POST MOUNTED INTO CONCRETE 600mm

Product Code: STAT.FROGTUFF003C-600R
What am I used for?

Tuff Post is designed to raise the height of a height safety system using a 600mm.  End anchor designed to be mounted into a concrete as attachment points for the cable to start and terminate at.

  • TUFF-POST is designed to raise the height of Frogline system.
  • TUFF-POST is made entirely from 316 stainless steel.
  • Designed to be submerged into garden beds, water and other mediums.
  • Designed to be anchored into concrete (steel bolted version available).

4 max Per System

Multi-Directional 360

Product Information
SAFETYLINK CORNER TUFF POST MOUNTED INTO CONCRETE

TUFF POST is designed to raise the height of a height safety system using either 150mm, 300mm or 600mm Tuff Post.

TUFF POST is a sealed unit made entirely from stainless steel. Designed to be submerged into garden beds, water and other mediums.

The TUFF POST when installed with a lifeline is used with SafetyLink’s energy absorbing FrogLine Lifeline. The FrogLine Lifeline has advanced shock absorbing serpentines designed into each anchor with innovative built-in fall indicators. Therefore reducing the load off the structure and the person in the event of a fall.

Continuous connection with 8mm stainless steel cable, utilising the FrogLine Shuttle System, up-to four users per system, two per span.

Product Components
Components
Product CodeProduct DescriptionQuantity
FROGLINE CNRFrogLine Base Corner1
BOLT-M16x50mm-SSBolt: 16mm x 50mm Set Screw1
WASHER M16_SPRINGSpring Washer: M161
WASHER M16_DONUTWasher: DonutLink M161
TUFF-POST600RTUFF-POST 600mm(Round)1
CON-M16x160Anchor Rod M16x160, M16 Nut, M16 Spring Washer & M16 Washer4
