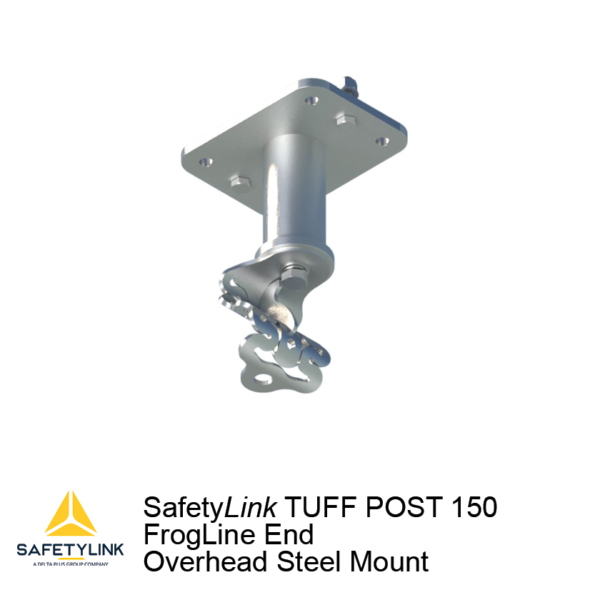

TUFF POST END MOUNTED OVERHEAD INTO STEEL 150mm

Product Code: STAT.FROGTUFF009S –150R
What am I used for?

Tuff Post is designed to give you greater flexibility for overhead applications.

  • TUFF-POST is designed to adjust the height of the FrogLine Lifeline system from supporting structure.
  • Designed to be mounted into overhead steel structure, where the lifeline needs lowering.
  • TUFF-POST is made entirely from 316 stainless steel.

4 max Per System

Multi-Directional 360

C Or Z Purlin

Product Information
SAFETYLINK END TUFF POST MOUNTED OVERHEAD INTO STEEL

TUFF POST is a sealed unit made entirely from stainless steel. Designed to adjust the height of the Frogline Lifeline system from supporting structure.

The TUFF POST when installed with a lifeline is used with SafetyLink’s energy absorbing FrogLine Lifeline. The FrogLine Lifeline has advanced shock absorbing serpentines designed into each anchor with innovative built-in fall indicators. Therefore reducing the load off the structure and the person in the event of a fall.

Continuous connection with 8mm stainless steel cable, utilising the FrogLine Shuttle System, up-to four users per system, two per span.

Product Components
Components
Product CodeProduct DescriptionQuantity
FROGLINE END OHFrogLine Base End Overhead1
BOLT-M16x50mm-SSBolt: M16 x 50mm1
WASHER M16Washer: M161
WASHER M16_SPRINGSpring Washer: M161
TUFF-POST150RTUFF-POST150mm(Round)1
BOLT-M12x50mm-SSBolt: M12 x 50mm Set Screw2
WASHER M12Washer: M122
WASHER M12 SpringSpring Washer: M122
NUT M12Nut: M122
