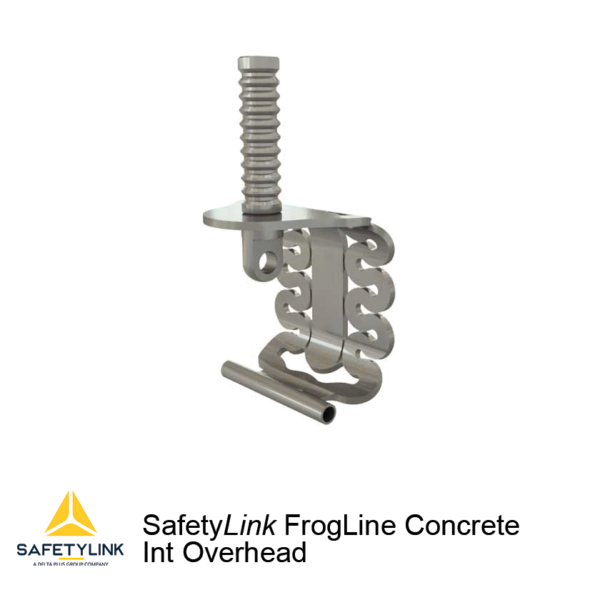

OVERHEAD MOUNTED LIFELINE FROGLINE - CONCRETE INTERMEDIATE

Product Code: STAT.FROGCON004
What am I used for?

A height safety system anchor point designed to be mounted into concrete as part of a horizontal lifeline system, as end anchor attachment points for the cable to start and terminate at.

  • Patented low profile design.
  • Advanced shock absorbing serpentine.
  • Must be chemically fastened.
  • Constructed entirely of stainless steel.
  • Equipped with an engineered energy absorbing region to minimise loads on users and structures in the event of a fall.
  • Intended for use with 8mm stainless steel cables.
  • Quick connect shuttle.
  • Smooth transition over intermediates.
  • The FrogLine has been rigorously tested and manufactured in accordance with Australia and New Zealand Standard AS/NZS 1891.2, American Standard ANSI Z359.6-2009, European Standards EN 795:2012 and CEN/TS 16415:2013.

4 max Per System

Multi-Directional 360

Concrete Roof

Product Information
OVERHEAD LIFELINE FROGLINE CONCRETE

The FrogLine lifelines low profile design combines effortless energy absorbing capabilities into every intermediate, and end anchor, consequently incorporating the line energy absorbers into the system. This inventive approach ensures our overhead mounted FrogLine lifelines are always installed with the maximum energy absorption possible regardless of the horizontal line length.

Product Components
Components
Product CodeProduct Description
STAT.FROGCON004FrogLine ConcreteLink Intermediate Anchor

The building or structure for the anchorages must be assessed by an engineer, unless it is clear to a competent person that the structure is adequate.

Maximum user per system is Four (4).
Maximum person per span is Two (2).
See system information for site specific use.
