FrogLine Intermediate Surface Mount


Product Code: STAT. FROGSUR001
What am I used for?

An horizontal lifeline system designed to be mounted on the surface of a metal roof profile. Fitted where access to the underside of the roof structure is difficult to access.

  • Energy absorbing horizontal lifeline.
  • Specifically for use with permanent horizontal height safety lifeline systems, to be mounted on the surface of a metal roof profile.
  • Intended for use with 8mm stainless steel cables.
  • Suits pitches no greater than 25 degrees on a multitude of roof profiles.
  • Equipped with an engineered energy absorbing region to minimise loads on users and structures in the event of a fall.
  • The FrogLine has been rigorously tested and manufactured in accordance with Australia and New Zealand Standard AS/NZS 1891.2, American Standard ANSI Z359.6-2009, European Standards EN 795:2012 and CEN/TS 16415:2013.

4 max Per System

2 max Per Span

Multi-Directional 360

Metal Roof

Product Information

Introducing the FrogLine Lifeline. Based on the sound engineering principles of the patented FrogLink anchor point, SafetyLink’s patented FrogLine horizontal lifeline is in a class of its own.

Product Components
Product Code Product Description

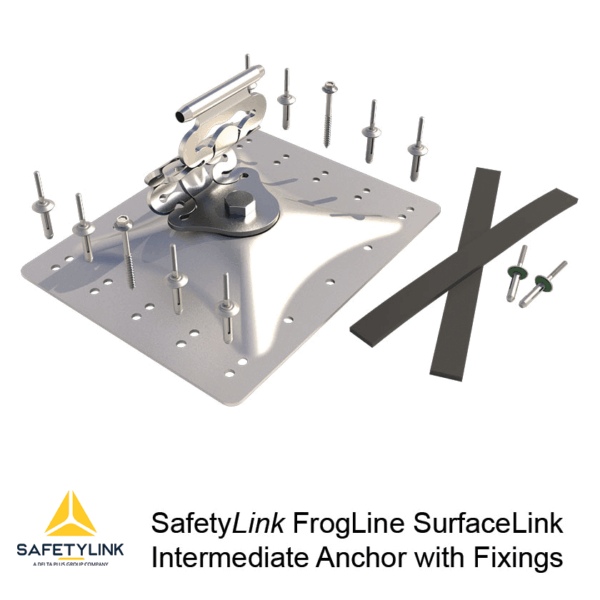

STAT. FROGSUR001 FrogLine SurfaceLink Intermediate Anchor Stainless Steel Plate
STAT. FROGSUR001+Fixings FrogLine SurfaceLink Intermediate Anchor Stainless Steel Plate+FIXINGS

The building or structure for the anchorages must be assessed by an engineer, unless it is clear to a competent person that the structure is adequate.

Maximum user per system is Four (4).
Maximum person per span is Two (2).
See system information for site specific use.
