Horizontal Lifeline FrogLine - Standing Seam Intermediate Extended

Product Code: STAT.FROGSCF008+S5
What am I used for?
  • Specifically for use with permanent horizontal height safety lifeline systems, to be mounted on the surface of standing seam roof profile with S5 brackets with pitches no greater than 15 degrees and across roof pitches no greater than 25 degrees.
  • Equipped with an engineered energy absorbing region to minimise loads on users and structures in the event of a fall.
  • Continuous connection with 8mm stainless steel cable, utilising the Frogline Shuttle System, upto four users per system, two users per span.
  • The FrogLine has been tested and manufactured in accordance with AS/NZS 1891.2, ANSI Z359.6-2009, EN 795:2012, CEN/TS 16415:2013 and OSHA 1926.502.

4 max Per System

Metal Roof

2 max Per Span

Multi-Directional 360

Product Information
Horizontal Lifeline FrogLine Standing Seam Surface Mounted

SafetyLink designs and manufactures height safety roof anchors and horizontal lifeline systems which provides restraint and fall arrest safety for all residential / commercial / industrial building sites, from a series of roof anchor points to a complete network of systems for maintenance, cleaning, access and inspections where working at heights.

Introducing the FrogLine Lifeline. Based on the sound engineering principles of the patented FrogLink anchor point, SafetyLink’s patented FrogLine horizontal lifeline is in a class of its own.

The FrogLine’s low profile design combines effortless energy absorbing capabilities into every intermediate, end and corner anchor, consequently incorporating the line energy absorbers into the system. This inventive approach ensures our FrogLine systems are always installed with the maximum energy absorption possible regardless of the line length.

The FrogLine’s curved profile, while smart in its simplicity provides the initial shock absorbing capabilities in the event of a fall. Further extension is provided in the serpentine shapes which progressively dissipate and absorb the energy whilst retaining their strength. This duality of function is why the FrogLine design surpasses all its competitors in the field.

Innovation and attention to detail is always foremost in our minds when designing new products. The FrogLine’s lifeline demonstrates this with its intricate tab features. These tabs provide stability whist the line is in tension, in addition to this they act as a fall indicator when removed from their initial position.

Designed with a variety of interchangeable components, the FrogLine is capable of being installed into a multitude of situations including metal roof sheeting, purlins, steel beams, plywood and concrete structures.

The FrogLine has been rigorously tested and manufactured in accordance with Australia and New Zealand Standard AS/NZS 1891.2 and European EN 795:2012, CEN/TS 16415:2013.

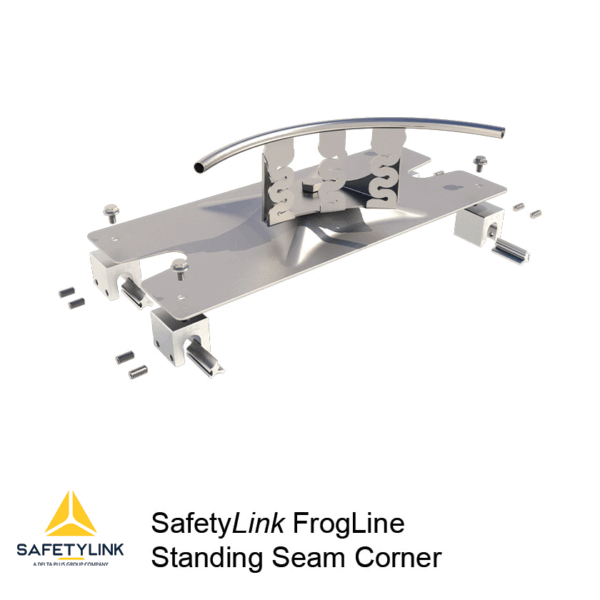

Product Components
Product Code Product Description
FROGLINE CORNER FrogLine Base Corner 316 Stainless Steel 1
BOLT-M16x35mm-SS Bolt: M16 x 35mm Stainless Steel 316 Stainless Steel 1
WASHER 70od-Plastic Washer: 70mm O.D. Black Plastic 2
ADV-PLATE-AL-(size) SurfaceLink Plate (view plate selector) Marine Grade Aluminium 1
WASHER 70od-SS Washer: 70mm O.D. 316 Stainless Steel 1
WASHER M16_SPRING Spring Washer: M16 316SS 316 Stainless Steel 1
NUT M16 Nut: M16 316 Stainless Steel 1
S5_BRACKET S5 Bracket (view S5 selector) 316 Stainless Steel 4

The building or structure for the anchorages must be assessed by an engineer, unless it is clear to a competent person that the structure is adequate.

Maximum user per system is Four (4).
Maximum person per span is Two (2).
See system information for site specific use.
